Removing Inner Side Panel (Saloon)

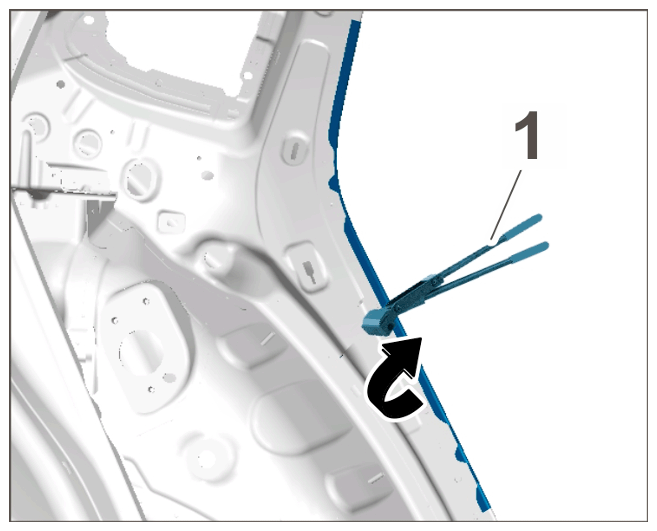

1. Bend up roll fold in the door entry area.
   1. 1.1 Heat connection areas using a hot-air gun.
   2. 1.2 Bend up roll fold using > VAS 6635 - crimping pliers set,-1-  4 pieces -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roll fold

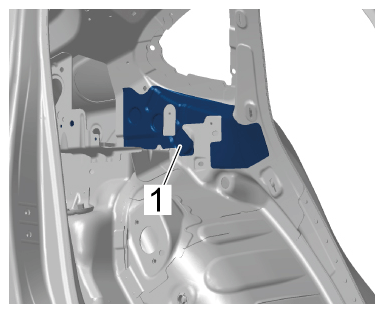

2. Remove sound absorber -1-  and expose connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sound absorber

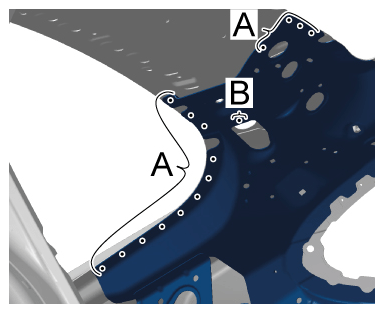

3. Disconnect connection points.
   1. 3.1 Drill through clinch points -A-  . > Diameter 4, 0 mm
   2. 3.2 Drill through punch rivet -B-  . > Diameter 6.6 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connection points

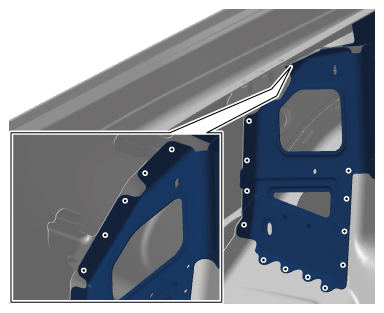

4. Drill out spotwelds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

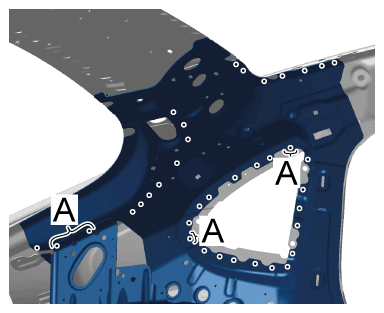

5. Drill out spotwelds.
   1. 5.1 Drill through two plate thicknesses in area -A-  .
   2. 5.2 Only drill through one plate thickness on the remaining spotwelds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

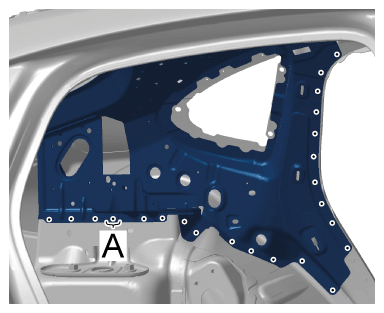

6. Drill out spotwelds.
   1. 6.1 Drill through two plate thicknesses in the marked areas -A-  .
   2. 6.2 Only drill through one plate thickness on the remaining spotwelds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

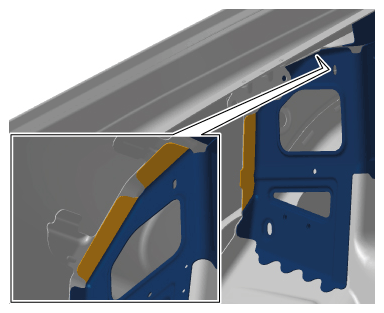

7. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

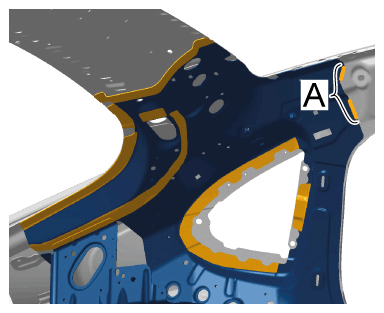

8. Grind down welded seams in area -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welded seams

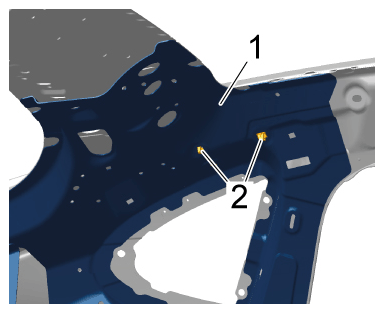

9. Unclip inner side panel (Saloon) -1-  from reinforcement -2-  and remove both.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner side panel (Saloon)
