Removing Side Section - Lower Part

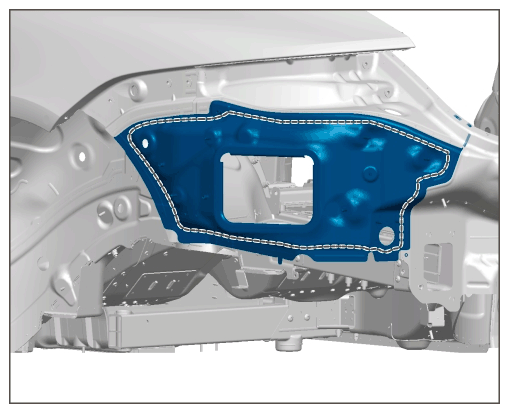

Roughly cut out side section lower part.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side section lower part
Only for Panamera Saloon

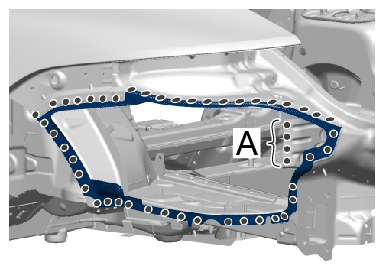

Drill through clinch points in area -A- . > Diameter 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clinch points
Drill through clinch points. > Diameter 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clinch points

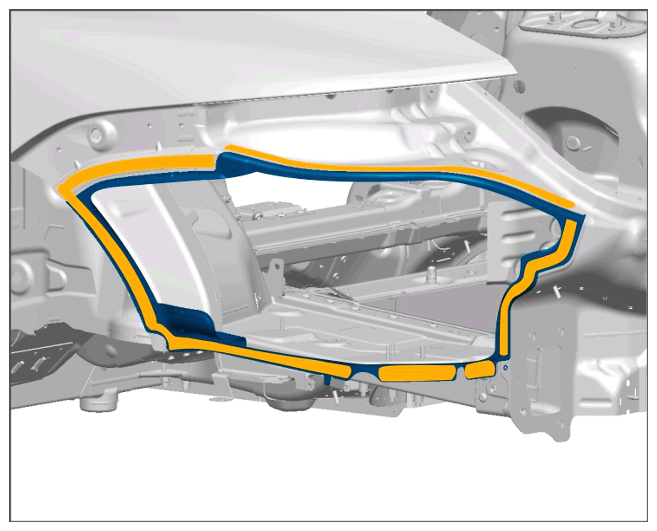

Heat bonding surfaces. > V.A.G 1416 - Hot-Air Blower

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding surfaces

Information

Carefully remove remaining pieces using a suitable tool. Connection points are needed for rivet joints.
Remove remaining sheetmetal parts and rear section of inner rear wheel housing.
