Removing Side Section Rear (Saloon)

Information

Drill out spotwelds A  through two plate thicknesses.

Information

The insulating mat will be ruined during removal and must be replaced.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Information

Mark cuts in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

1. Mark cuts.

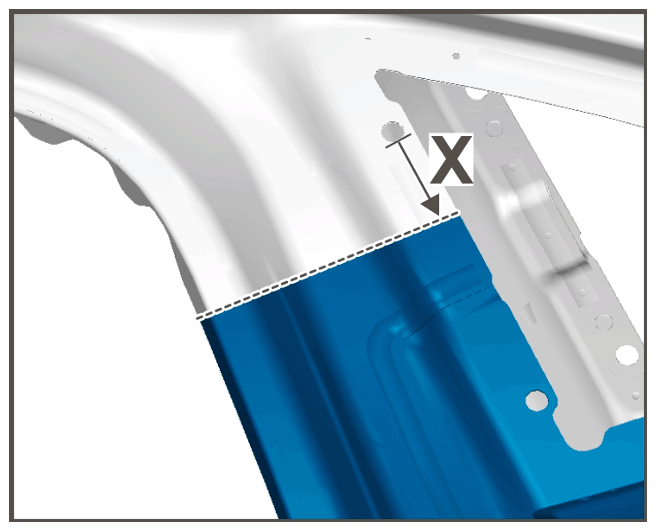

   1. 1.1 Mark cut on the C-pillar at -Dimension X-  > Distance 40 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut on C-pillar

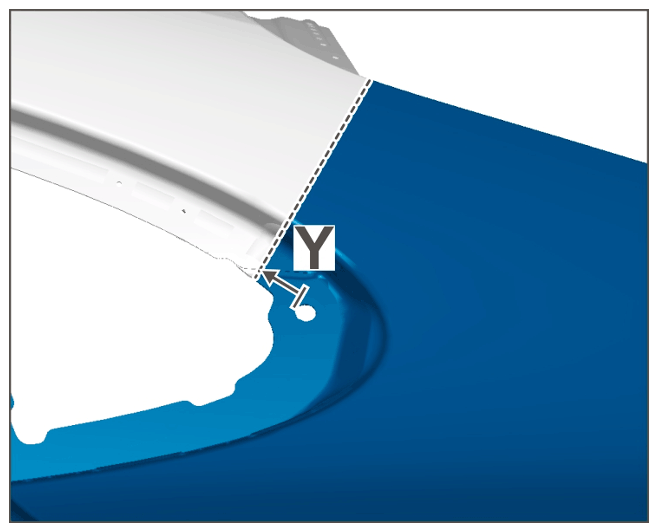

   2. 1.2 Mark cut on the D-pillar in the window aperture area at -Dimension Y-  > Distance 50 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut in window aperture area

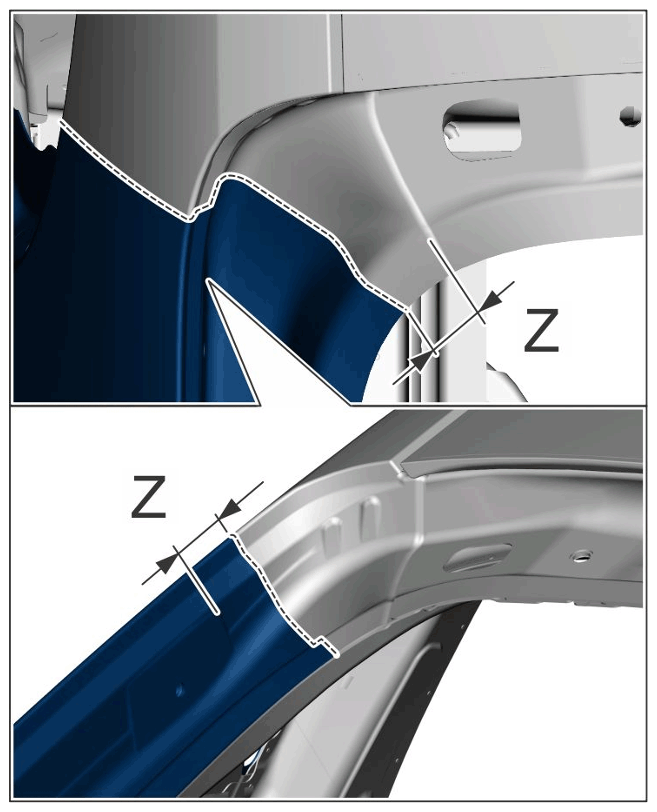

   3. 1.3 Mark cut on the D-pillar in the water drain channel area at -Dimension Z-  > Distance 40 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut in water drain channel area

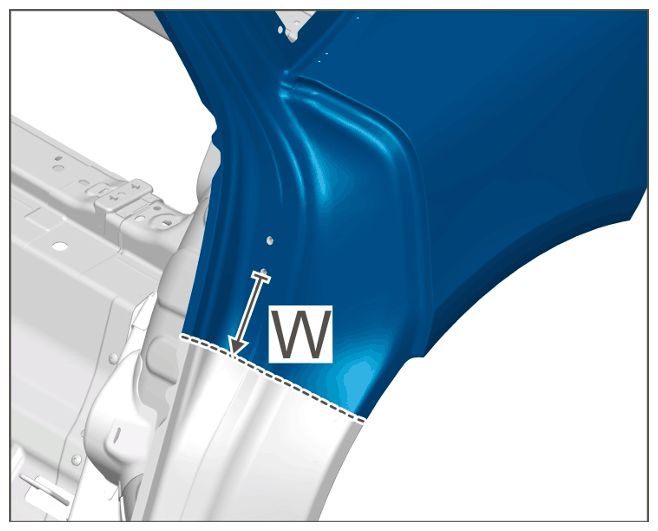

   4. 1.4 Mark cut on the lower side panel at -Dimension W-  > Distance 150 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut on lower side panel

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Make cuts.

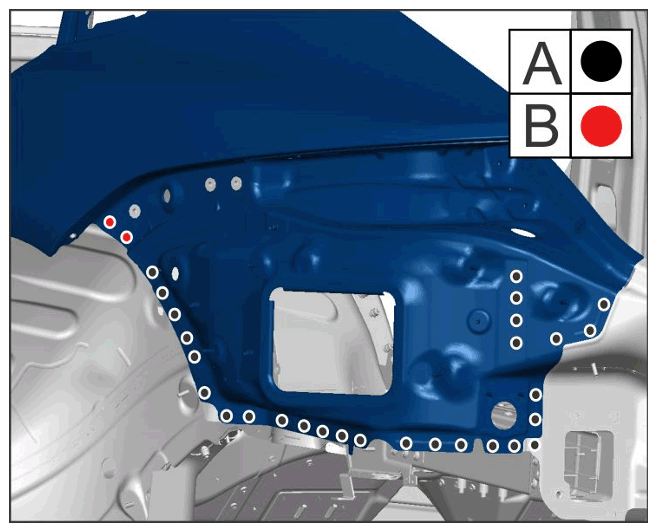

3. Drill through clinch points -A-  . > Diameter 6.6 mm

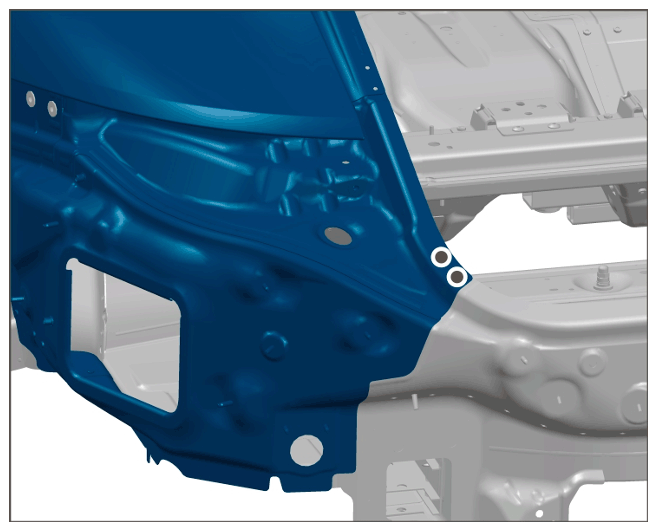

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

4. Drill through clinch points -B-  . > Diameter 4 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

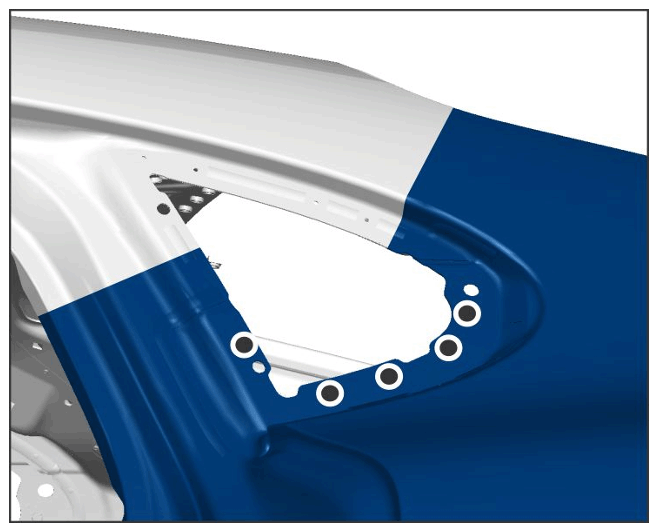

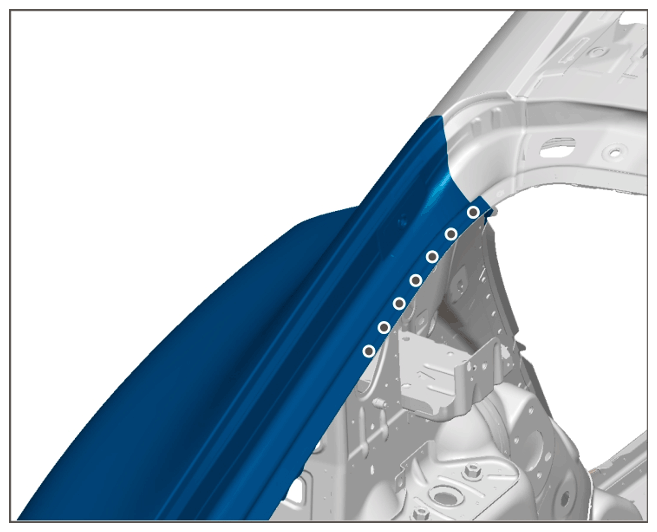

5. Drill through clinch points. > Diameter 4 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clinch points

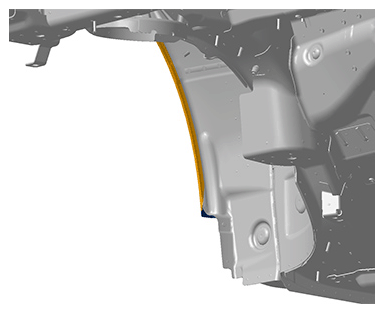

6. Bending up edge of wheel arch.
   1. 6.1 Heat connection areas using > V.A.G 1416 - hot-air blower  .
   2. 6.2 Bend up wheel arch edge using > VAS 6635 - crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wheel arch edge

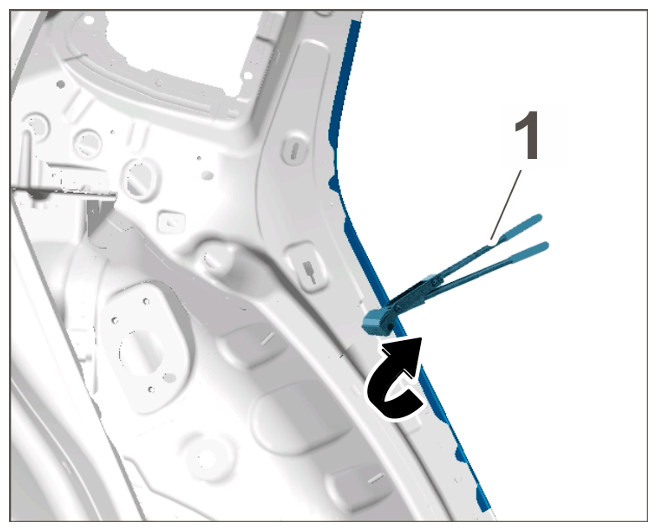

7. Bend up roll fold in the entry area.
   1. 7.1 Heat connection areas using a > V.A.G 1416 - hot-air blower  .
   2. 7.2 Bend up roll fold using > VAS 6635 - crimping pliers set, 4-piece-1-Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roll fold

8. Heat connection areas using > V.A.G 1416 - hot-air blower  .
9. Remove rear side panel (Saloon).
