Removing Rear Side Member (Section)

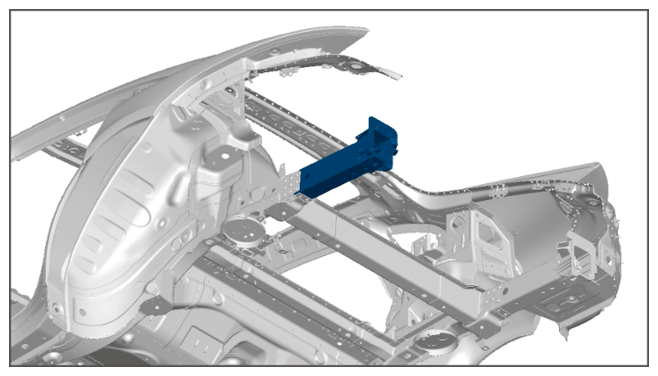

Fig 1: Rear Side Member Component Location (Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear side member (section)

1. Unscrew self-tapping screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

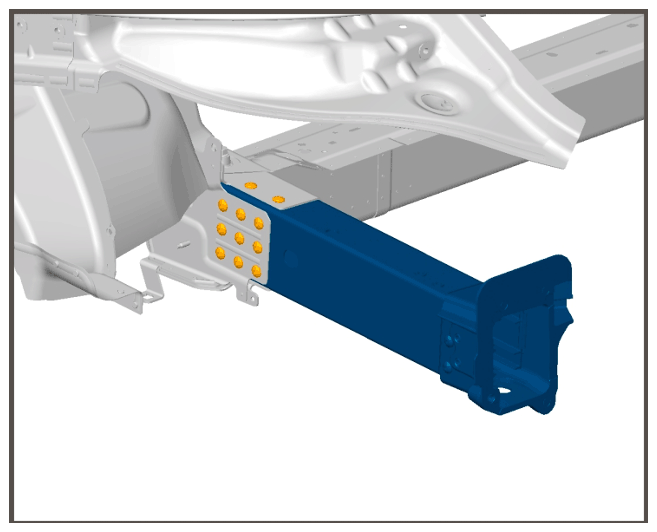

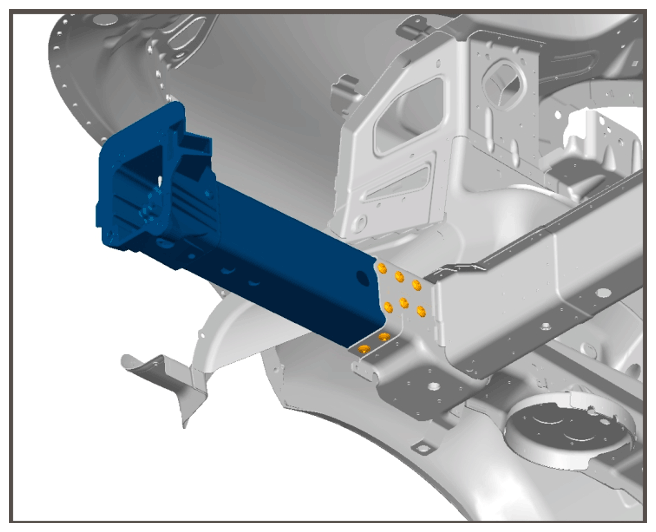

   Unscrewing self-tapping screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing self-tapping screws

2. Heat up bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

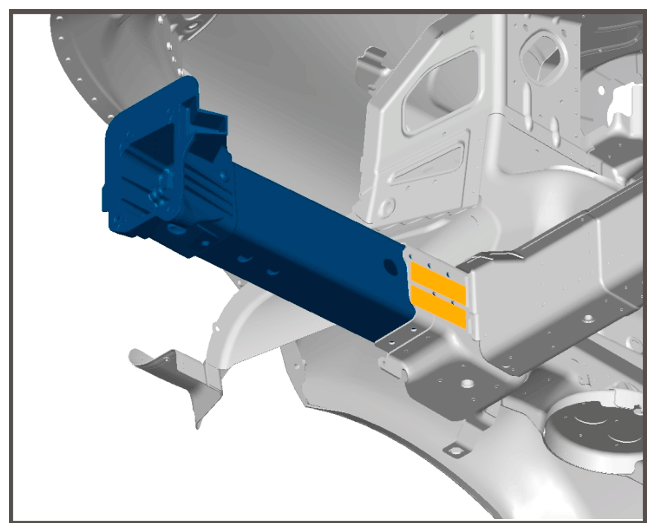

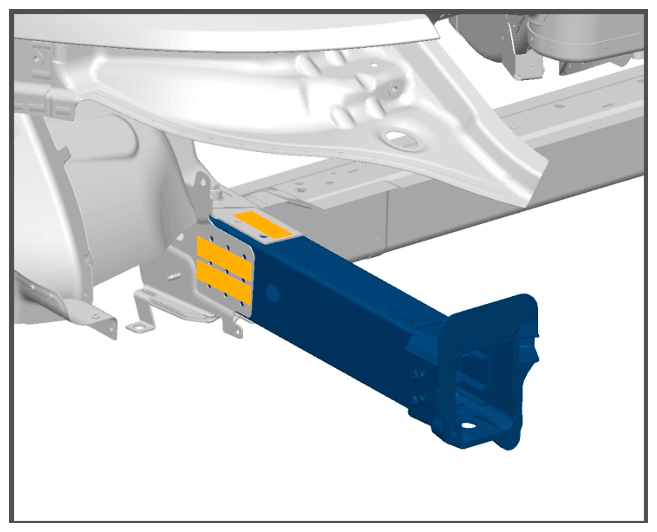

   Heating up bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating up bonding areas

3. Remove rear side member (section).
