Preparing Connection Areas Of Body For Installing Rear Side Member (Section)

1. Drill out thread.

   > Diameter 7.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

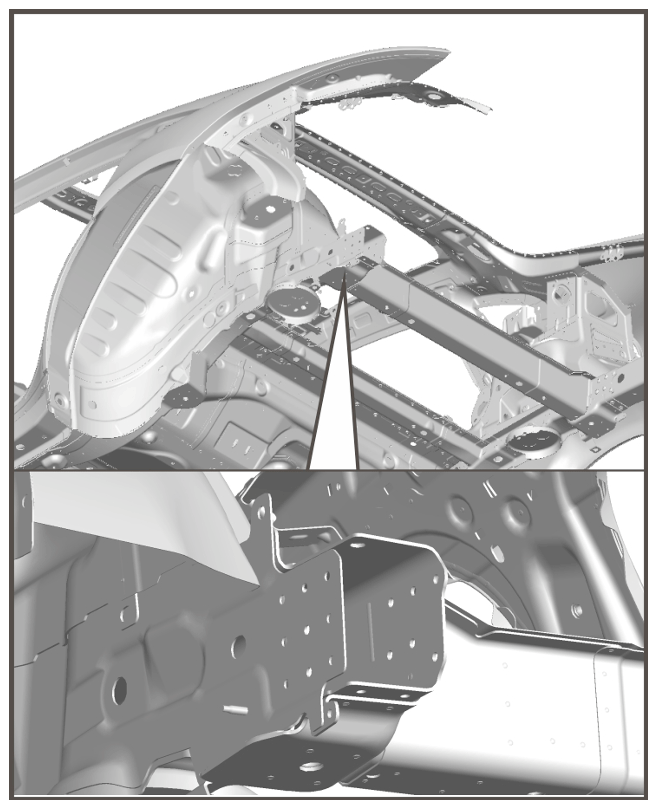

   Drilling out thread

2. Prepare connection areas for bonding.

   > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

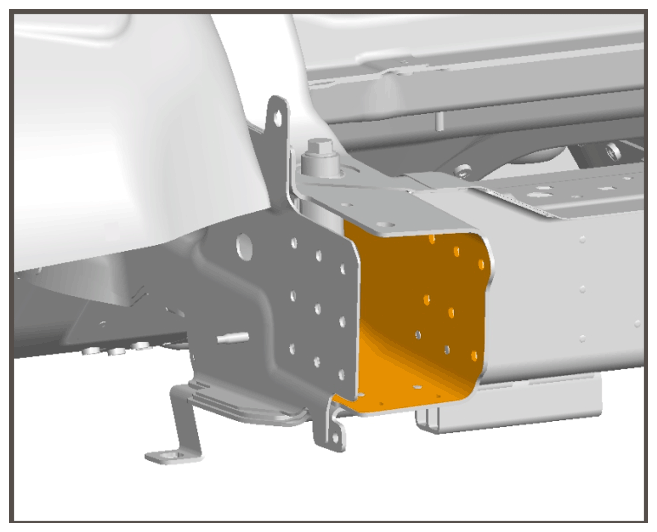

Preparing connection areas for bonding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

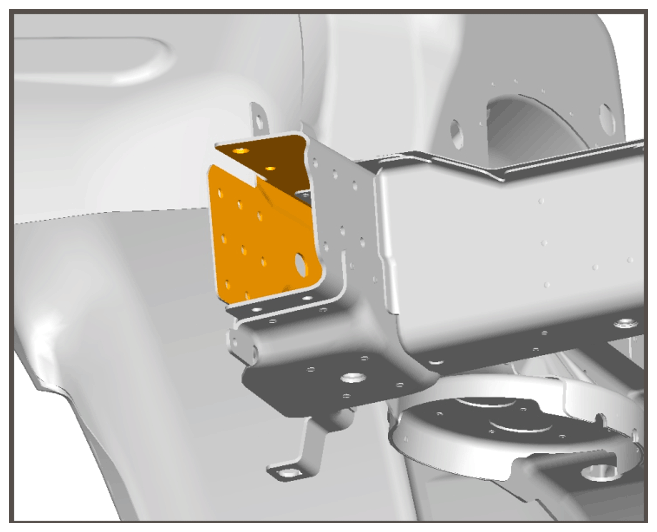

Preparing connection areas for bonding
