Installing Rear Cross Member

1. Apply adhesive on the joint area of the body.

   > 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

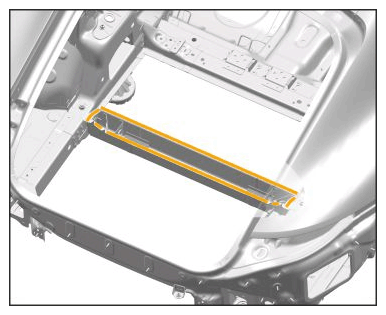

   Apply adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

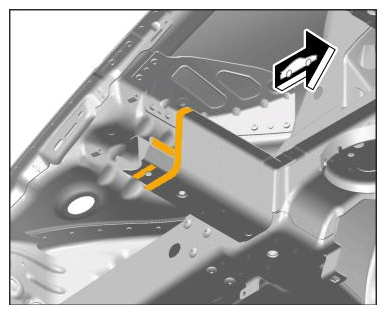

   Apply adhesive

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   1. 1.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
2. Install and resistance spot-weld lower part of cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

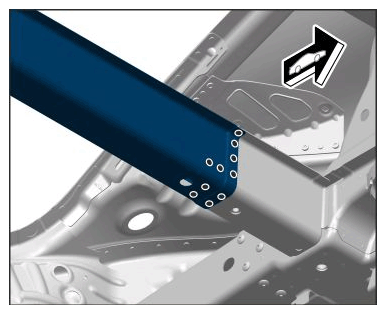

   Resistance spot-welding lower part of cross member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

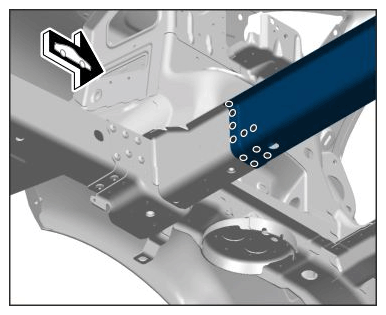

   Resistance spot-welding lower part of cross member

3. Apply adhesive on the rear cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

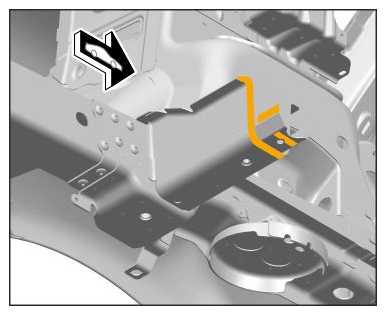

   Apply adhesive

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

   1. 3.1 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm
4. Install and resistance spot-weld lower part of cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

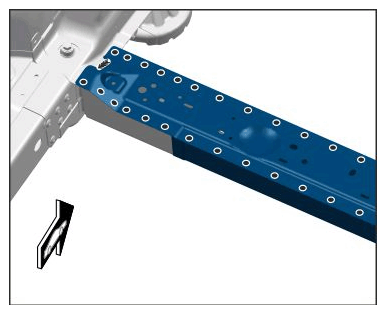

Resistance spot-welding upper part of cross member
