Preparing Connection Areas Of The Body For Installing The Rear Closing Panel (Saloon)

1. Align the sealing surface and connections of the body.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
2. Prepare marked areas, including the inner surfaces of the lower corner part -A -  , for joining.

   > 5X00IN21 Working with body structural adhesive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

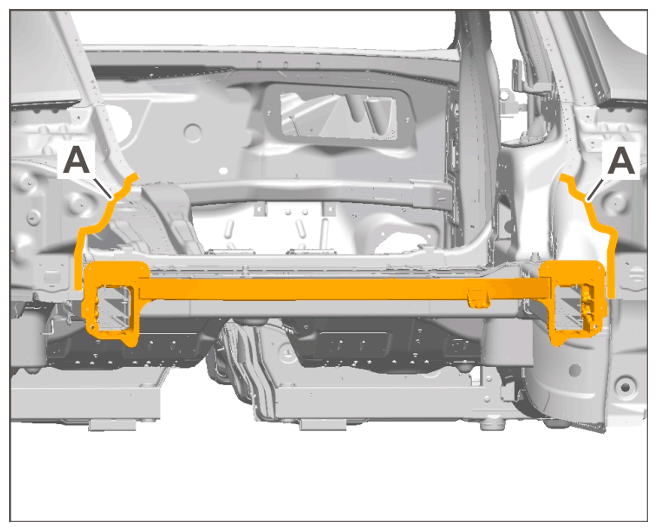

Connection areas of body
