Installing Rear Closing Panel (Saloon)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install rear closing panel (Saloon) and check that it fits perfectly.
2. Apply adhesive on the joint area of the body.

   > 5X00IN21 Working with body structural adhesive

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm

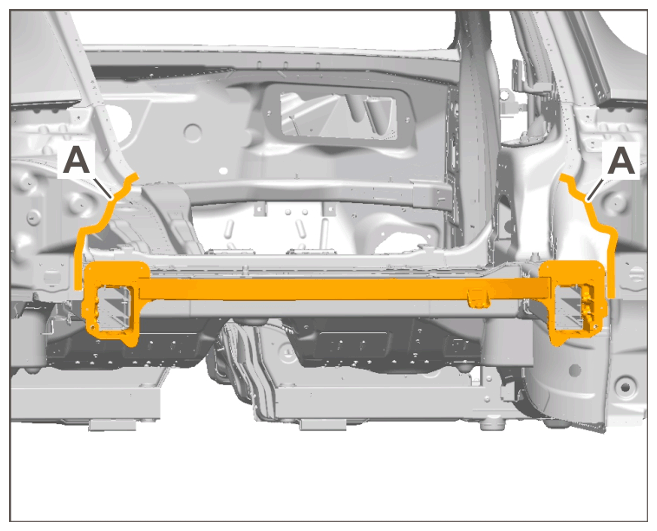

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive

3. Apply adhesive on rear closing panel (Saloon).

   > 5X00IN21 Working with body structural adhesive

   1. 3.1 Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm
   2. 3.2 Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm

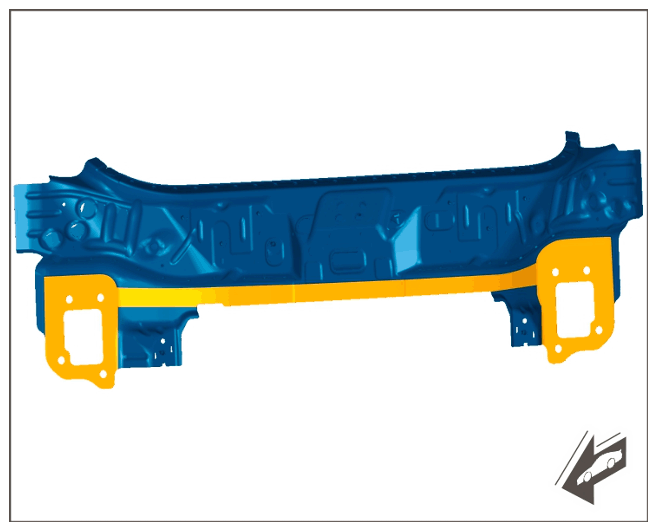

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive

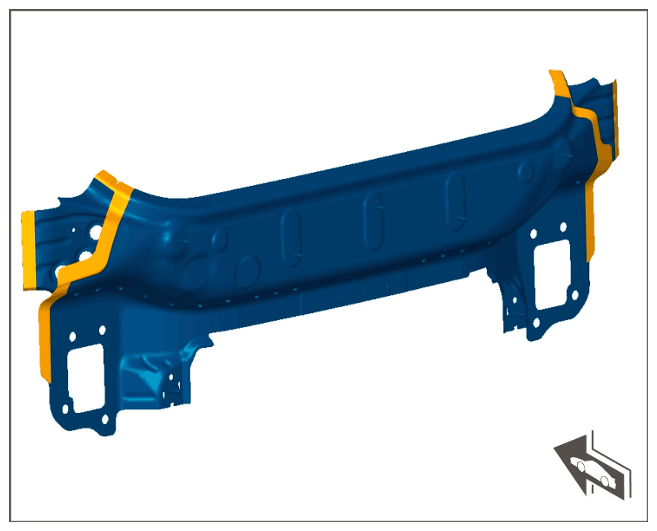

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive

4. Set blind rivets. > BLIND RIVETS 999.190.229.01

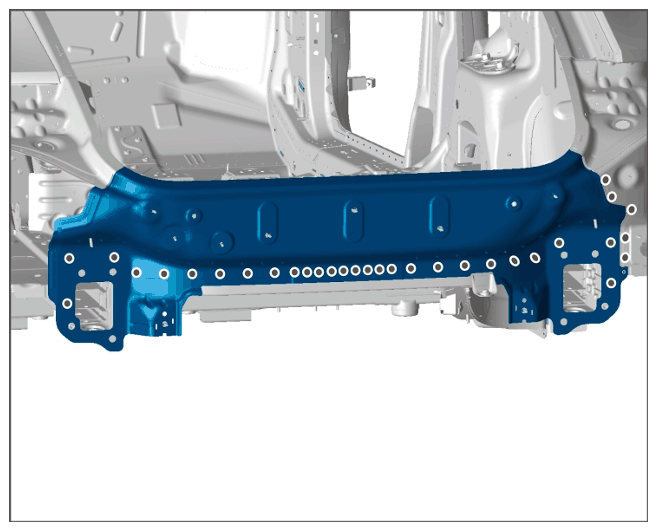

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

5. Set flow-form rivets. > FLOW-FORM RIVETS 9A7.008.473.00

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

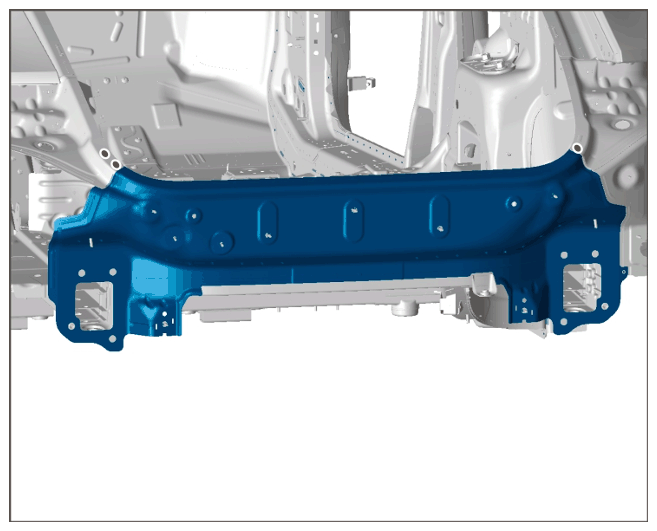

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Flow-form rivets
