Removing Rear Closing Panel (Saloon)

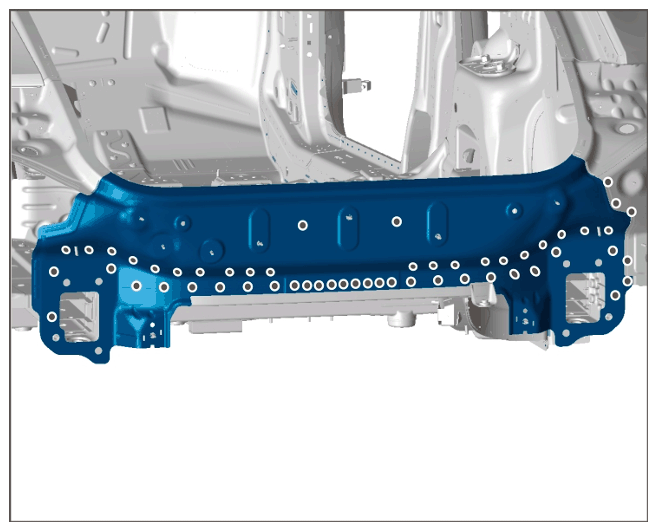

Drill through clinch points. > Diameter 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clinch points

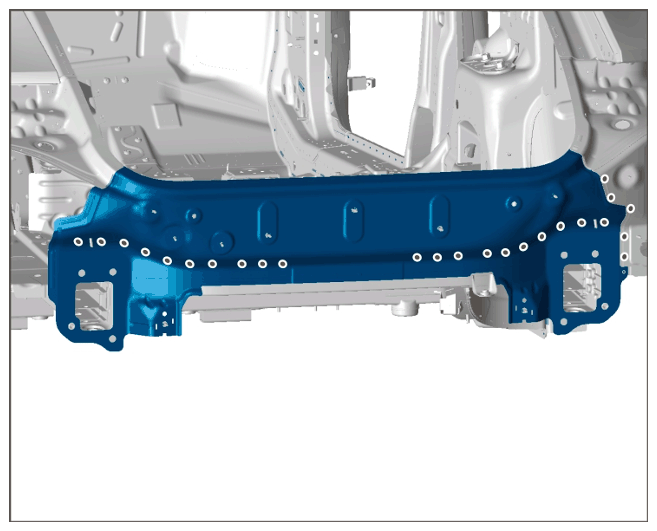

Drill through clinch points. > Diameter 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clinch points

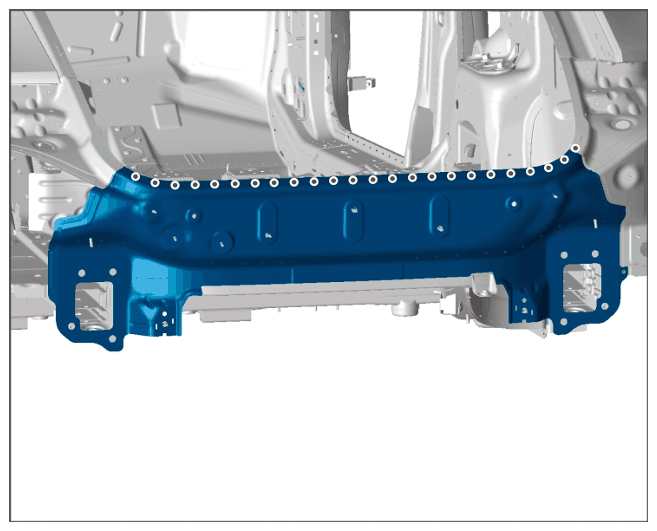

Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
> 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

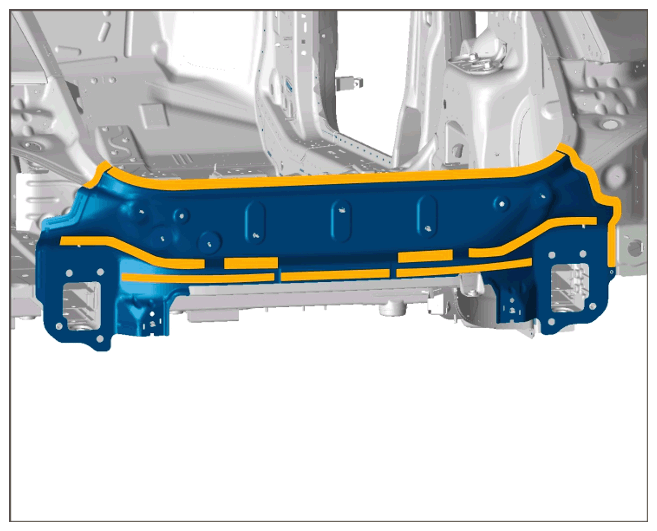

Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating up bonding areas
Remove rear closing panel (Saloon).
