Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

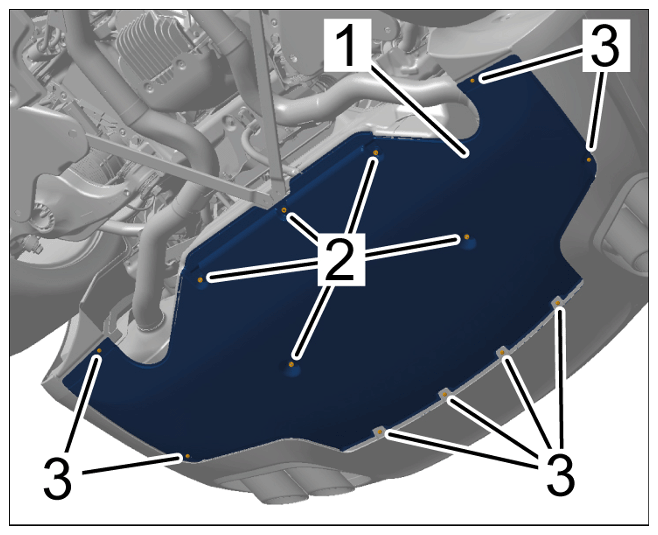

| Nuts for rear underbody cover | Item 2 | Tightening torque | 2.5 Nm ((1.75 ftlb.) | ||
|
Nuts for rear underbody cover |
|||||
| Screws for rear underbody cover | Item 3 | Tightening torque | 2.5 Nm ((1.75 ftlb.) | ||
|
Screws for rear underbody cover |
|||||
