Removing Centre Side Member

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark separation points A, B, C  in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

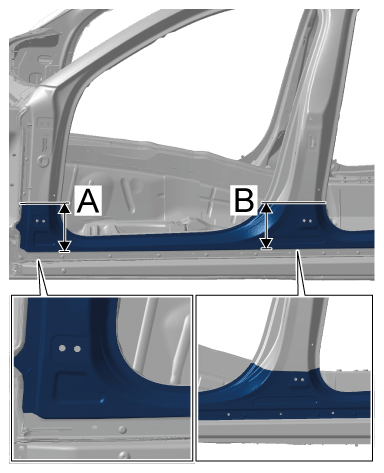

1. Mark and make cut -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Making cut

   B	> Distance 160 mm

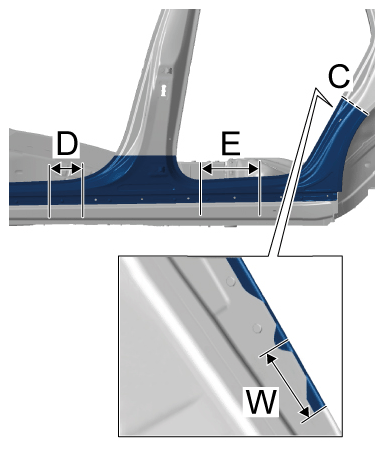

2. Mark cuts -C and D-  and make cuts -C and D-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Making cuts

   D	> Distance from bore hole 100 mm
   W	> Distance 40 mm

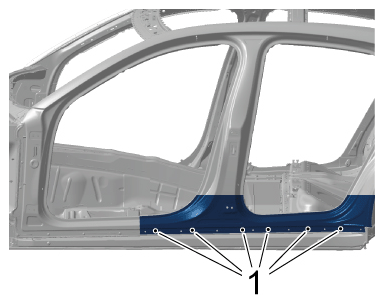

3. Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing self-tapping screws

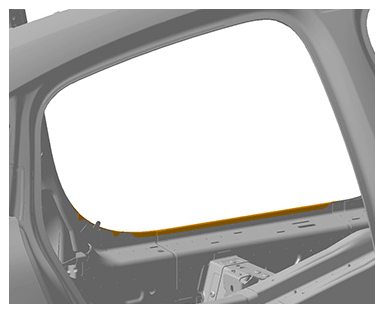

4. Bend up edges in -marked area-  in front door aperture.
   1. 4.1 Heat bonding areas using > V.A.G 1416 - Hot-Air Blower  .
   2. 4.2 Bend up edges in -marked area-  in the front door aperture using > VAS 6635 - Crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bending up edges in front door aperture

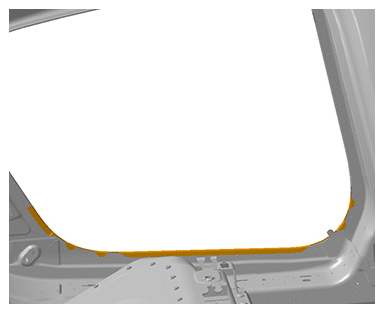

5. Bend up edges -in the marked area-  in rear door aperture.
   1. 5.1 Heat bonding areas using > V.A.G 1416 - Hot-Air Blower  .
   2. 5.2 Bend up edges -in the marked area-  in the rear door aperture using > VAS 6635 - Crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bending up edges in rear door aperture

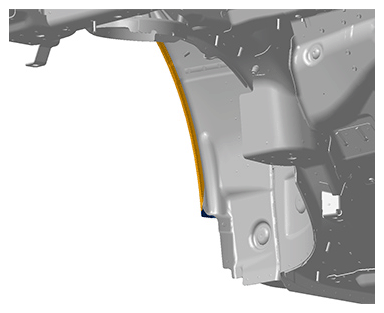

6. Bend up edges -in the marked area-  at the rear wheel housing.
   1. 6.1 Heat bonding areas using > V.A.G 1416 - Hot-Air Blower  .
   2. 6.2 Bend up edges -in the marked area-  on rear wheel housing using > VAS 6635 - Crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bending up edges in rear wheel housing

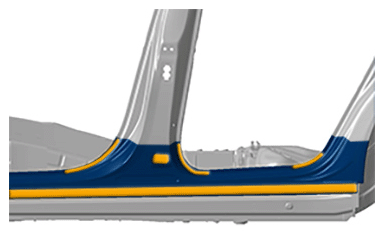

7. Heat bonding areas -in the marked area-  using > V.A.G 1416 - Hot-Air Blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating up bonding areas

8. Remove centre side member.
