Installing Centre Cross Member

Install centre cross member and check that it fits perfectly.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Information
- Apply adhesive evenly over the entire bonding surface.

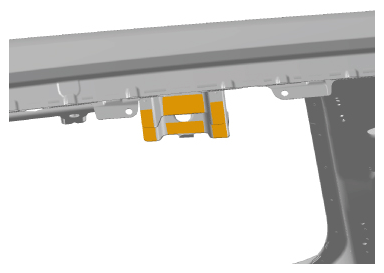

Apply adhesive on joint areas of the body. > Application depth 0.5 mm
Use body structural adhesive.

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive

Information
- Apply adhesive evenly over the entire bonding surface.

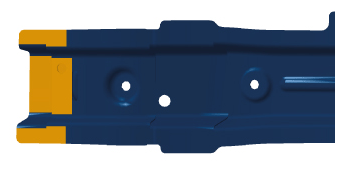

Apply adhesive on the centre cross member. > Application depth 0.5 mm
1. 3.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive

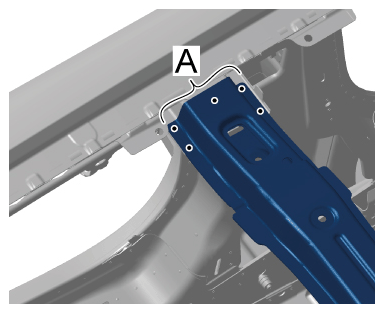

Rivet in centre cross member in area -A- . > BLIND RIVET 999.190.227.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre cross member

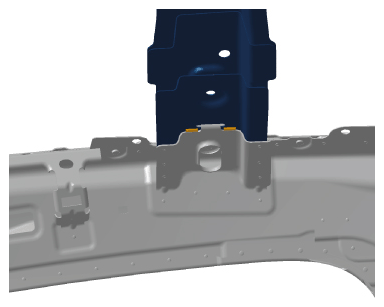

Apply a full weld to the centre cross member using inert gas.
