Removing Roof (Panoramic Roof)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

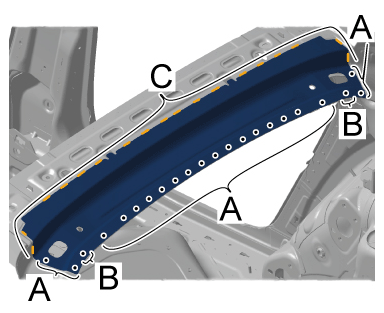

Disconnecting connection points

1. 1.1 Remove punch rivets -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

2. 1.2 Drill through clinch points -B-  . > Bore diameter 4 mm
3. 1.3 Punch and align holes for flow-form rivets.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

4. 1.4 Grind down welded seams -C-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

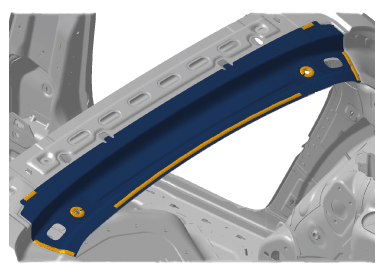

Heating up bonding areas
