Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

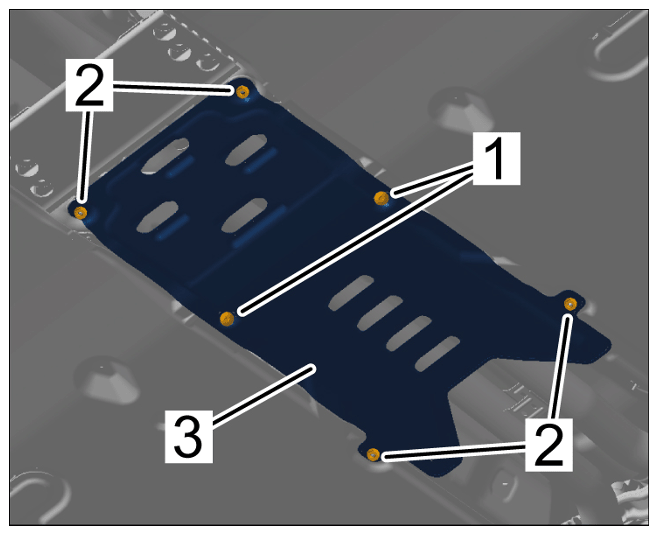

| Screws for tunnel cover on centre underbody | Item 1 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Screws for tunnel cover on centre underbody cover |
|||||
| Nuts for tunnel cover on centre underbody cover | Item 2 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Nuts for tunnel cover on centre underbody cover |
|||||

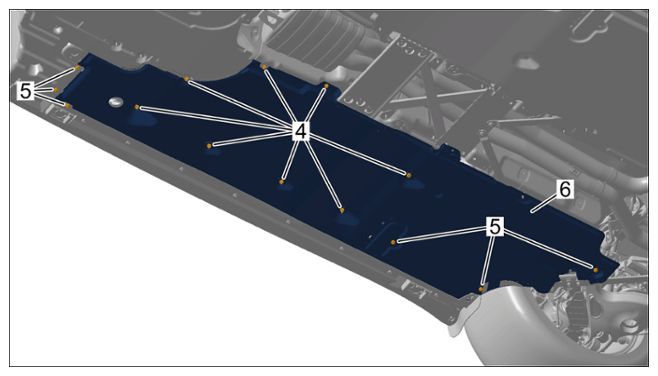

| Nuts for centre underbody cover (at the sides) | Item 4 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Nuts for centre underbody cover (at the sides) |
|||||
| Screws for centre underbody cover (at the sides) | Item 5 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
Screws for centre underbody cover (at the sides) |
|||||
