Repairing Thread On Rear Tunnel
Information
The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.
Information
- Remove wire thread inserts that are installed on production side before drilling out.

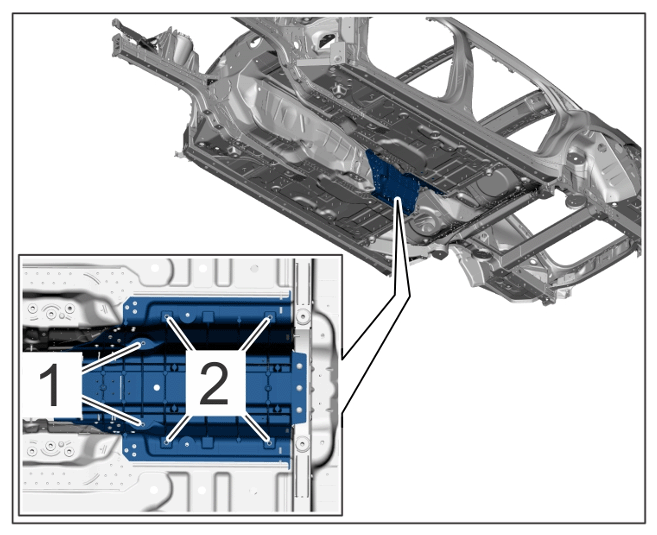

Overview of standard thread on rear tunnel
| 1 | Threaded insert, M8 x 20 |
| 2 | Threaded insert, M10 x 25 |

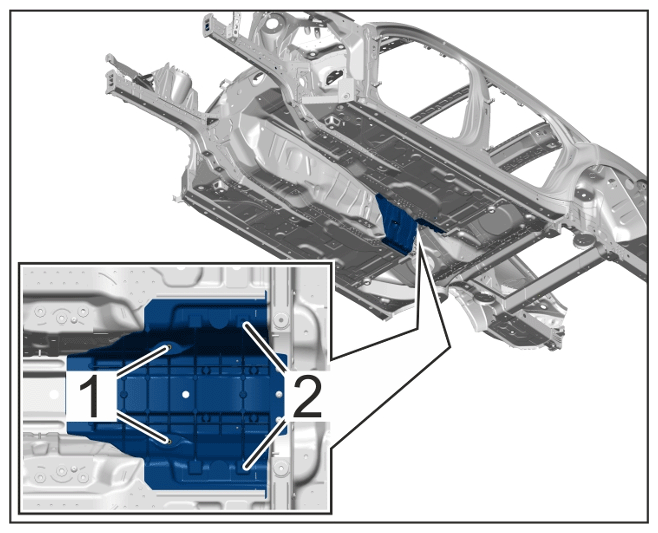

Overview of standard thread on rear tunnel (executive)
| 1 | Threaded insert, M8 x 20 |
| 2 | Threaded insert, M10 x 25 |

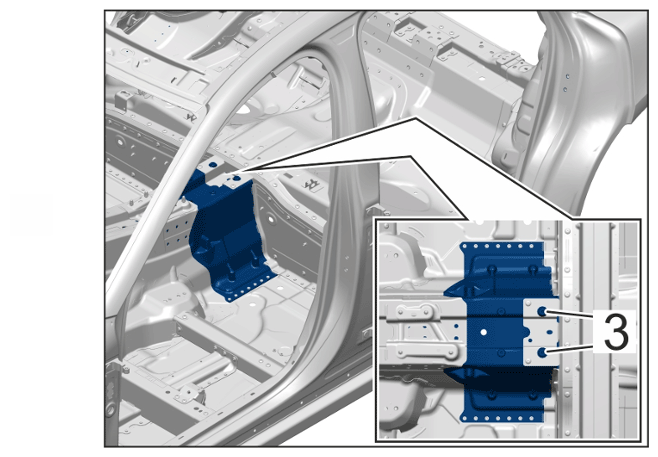

Overview of standard thread on rear tunnel (top)
| 3 | M6 |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

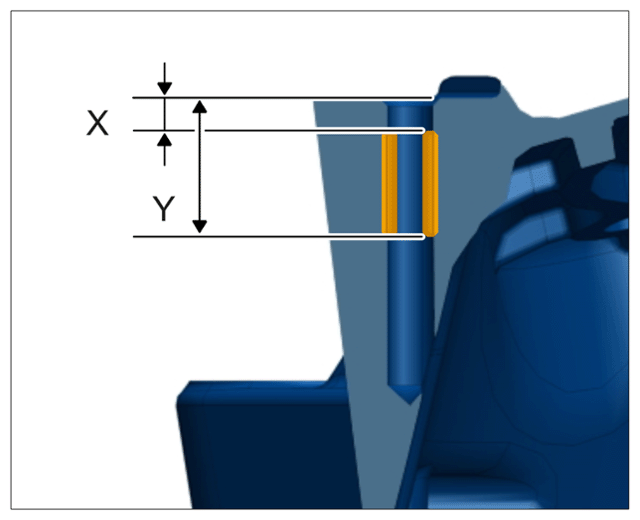

| Thread 1 | Dimension Y | Length | 20 mm | |
|
Thread repairs on rear tunnel |
||||
| Thread 1 | Dimension X | Length | 5 mm | |
|
Thread repairs on rear tunnel |
||||
- Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01 .

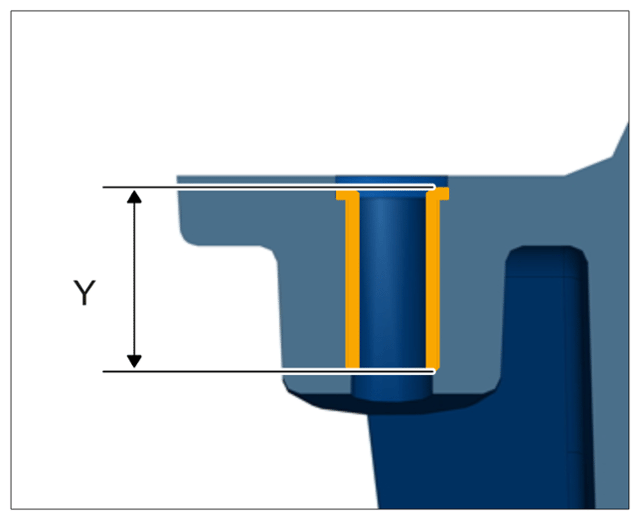

Location Description Type Basic value Tolerance Thread 2 Dimension Y Length 25 mm
Thread repairs on rear tunnelThread 2 Dimension X Length 5 mm
Thread repairs on rear tunnel - Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/1 - Thread repair kit with threaded bush > THREADED BUSH 999.504.268.01 .
Location Description Type Basic value Tolerance Thread 3 Dimension Y Length 9.4 mm
Thread repairs on rear tunnel - Repair thread
Use repair kit > VAS 6914 - Thread repair kit, M6 x 1 with short threaded bush.
