Repairing Rear Impact Absorber Plate Thread
Information

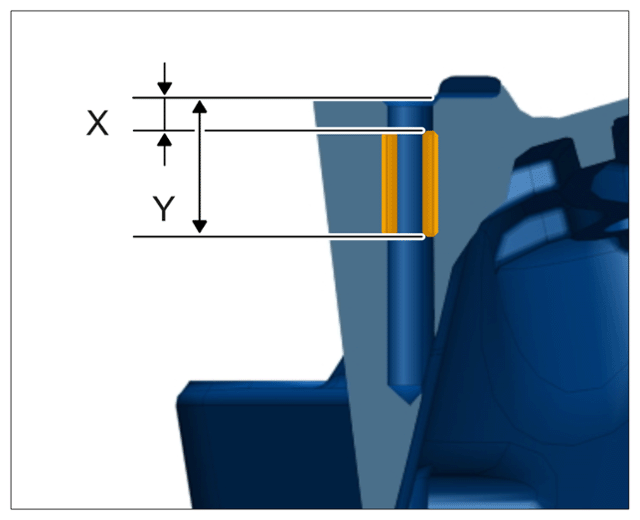

The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.
Information
- Remove wire thread inserts that are installed on production side before drilling out.

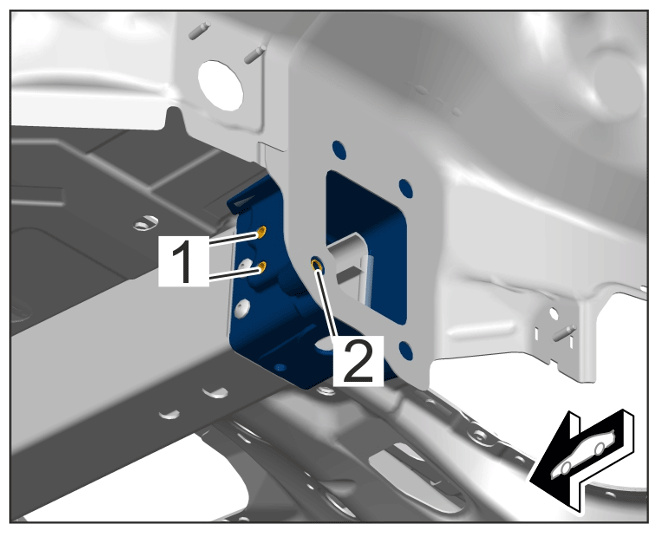

Overview of standard thread on rear impact absorber plate
| 1 | Threaded insert, M8 x 20 |
| 2 | Threaded insert, M10 x 25 |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 1 | Dimension Y | Length | 20 mm | |
|
Thread repairs on rear impact absorber plate |
||||
| Thread 1 | Dimension X | Length | 5 mm | |
|
Thread repairs on rear impact absorber plate |
||||
- Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/3 - Thread repair kit with threaded bush > THREADED BUSH 999.504.262.01 .
Location Description Type Basic value Tolerance Thread 2 Dimension Y Length 25 mm
Thread repairs on rear impact absorber plateThread 2 Dimension X Length 5 mm
Thread repairs on rear impact absorber plate - Repair thread
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/1 - Thread repair kit with threaded bush > THREADED BUSH 999.504.268.01 .
