Removing Seat Cross Member

  1. Disconnect connection points.
    1. 1.1 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

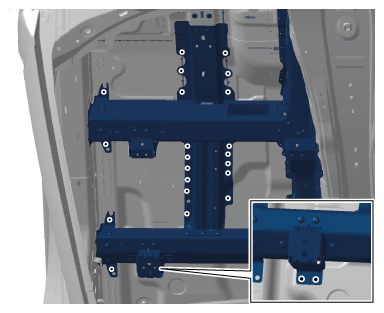

      G16161454

      Removing punch rivets

    2. 1.2 Unscrew self-tapping screws -1-  .

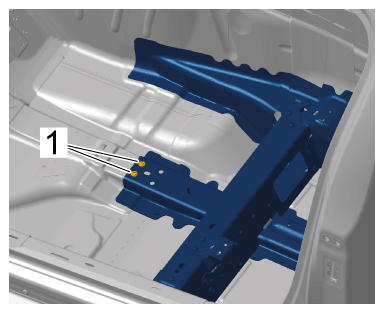

      G16161455

      Unscrewing screws

    3. 1.3 Drill out spotwelds.

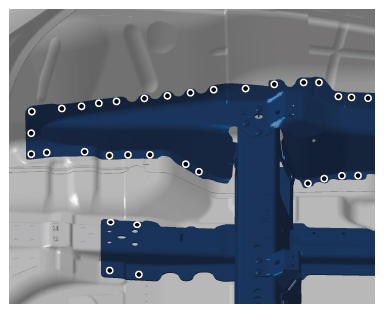

    G16161456

    Drilling out spotwelds at the front

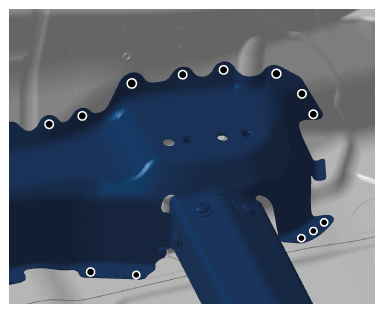

    G16161457

    Drilling out spotwelds at the rear

  2. Cut welded seams on the seat cross member.

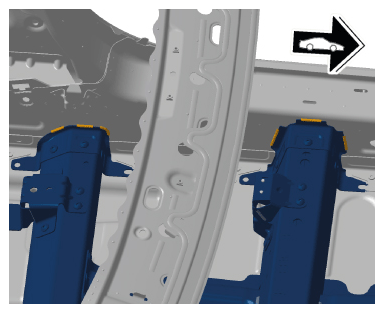

    G16161458

    Cutting welded seams at the left

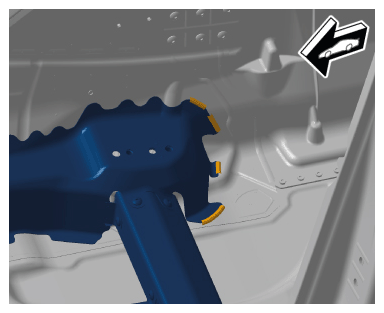

    G16161459

    Cutting welded seams at the right

  3. Heat up bonding areas.

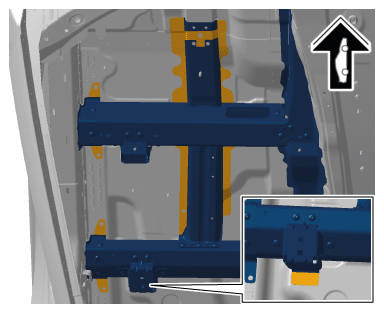

    G16161460

    Heating up bonding areas

  4. Remove seat cross member.
