Preparing Connection Areas Of Body For Installing Seat Cross Member

1. Align the sealing surfaces and connections of the body.
2. De-burr connection points and prepare them for joining.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
   • Do not begin bonding work until all materials and tools necessary for later repair work are available.
3. Prepare marked areas for bonding and riveting.

   > 5X00IN21 Working with body structural adhesive

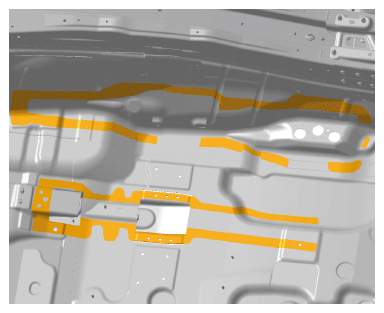

Preparing marked areas

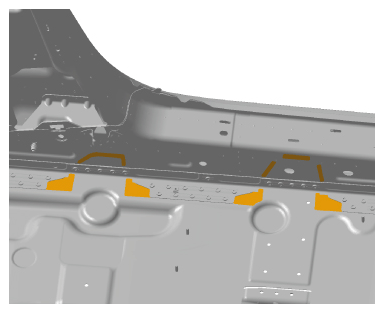

Preparing outer marked areas
