WM, 517355 Replacing FLOORPAN: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G16161343

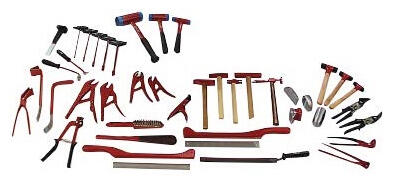

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16161344
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16161345
Measuring and straightening system General workshop equipment > VAS 811 017
G16161346
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16161347
Resistance Spot Welder General workshop equipment > VAS 6755
G16161348
Resistance Spot Welder General workshop equipment > VAS 6545A
G16161349

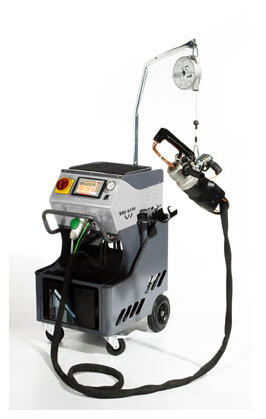

Resistance Spot Welder General workshop equipment > VAS 6530A
G16161350
Resistance Spot Welder General workshop equipment > VAS 821 101
G16161351
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16161352
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16161353
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16161354
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16161355
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G16161356
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16161357
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16161358
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G16161359
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16161360
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16161361
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16161362
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16161363
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16161364
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16161365
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16161366
Extension Vehicle-specific workshop equipment > VAS 6792/2
G16161367
Extension Vehicle-specific workshop equipment > VAS 6792/28
G16161368
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16161369
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16161370
Spot-weld remover General workshop equipment > VAS 882 001
G16161371
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16161372

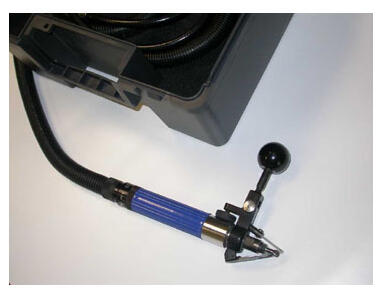

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16161373

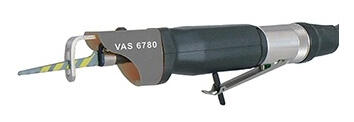

Body saw General workshop equipment > VAS 6780
G16161374
Body saw General workshop equipment > VAS 6598A
G16161375
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G16161376
100° countersink Vehicle-specific workshop equipment > VAS 6957
G16161377
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16161378
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16161379
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16161380
Compressed-air gun General workshop equipment > VAS 6648
G16161381
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16161382

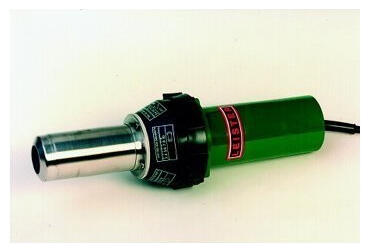

Hot-air blower General workshop equipment > V.A.G 1416
G16161383

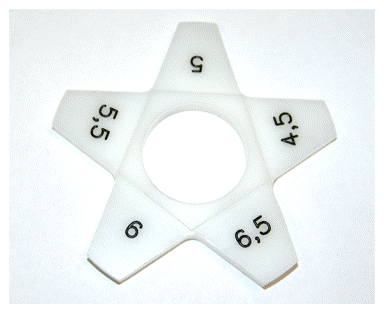

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16161384
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16161385

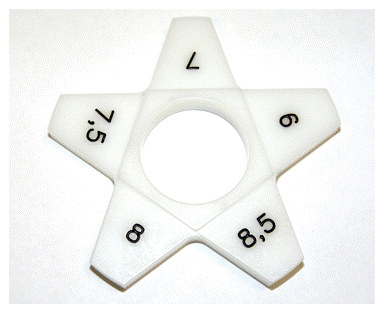

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16161386
