Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

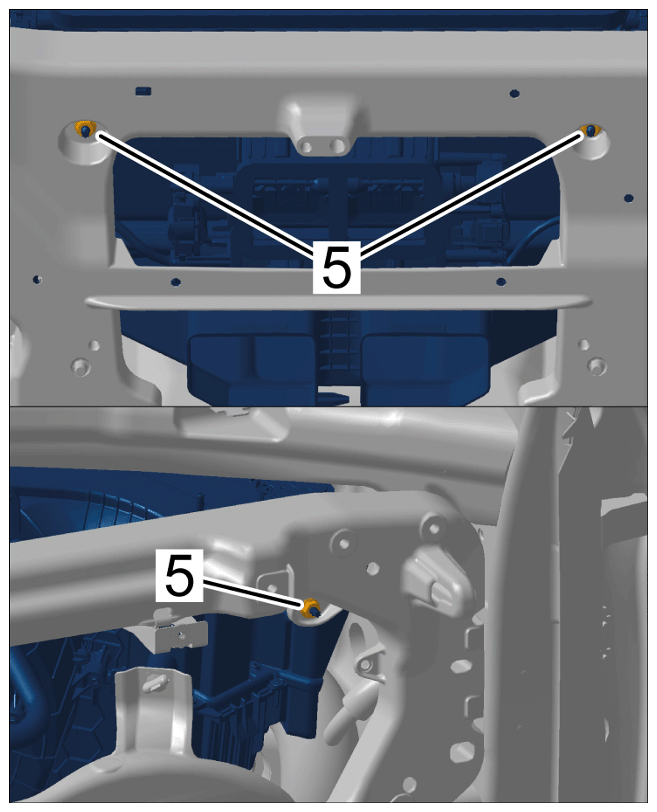

| Nuts securing heating/fresh-air unit to dashboard bracket | Item 5 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Nuts securing heating/fresh-air unit to dashboard bracket |
|||||

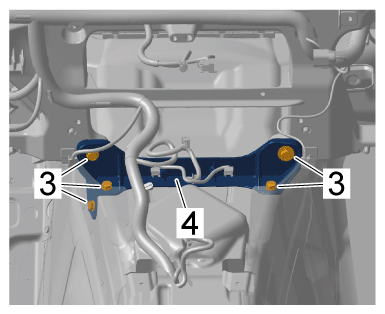

| Screw securing centre support to dashboard bracket | Item 3 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Screws securing centre support to dashboard bracket |
|||||

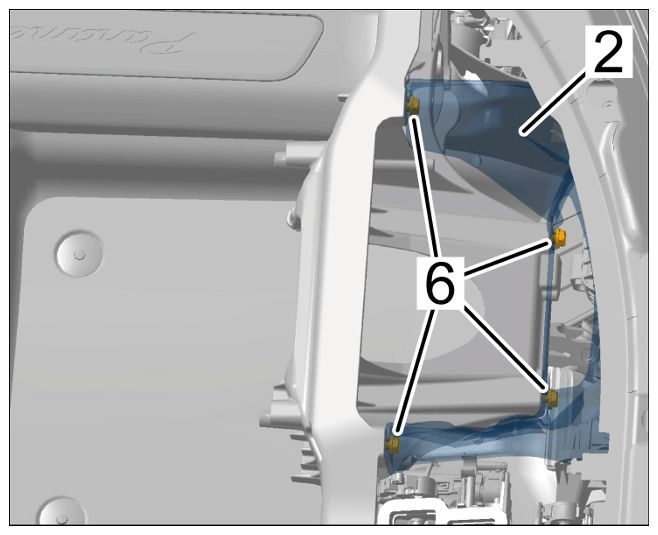

| Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket) | Item 6 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket) |
|||||

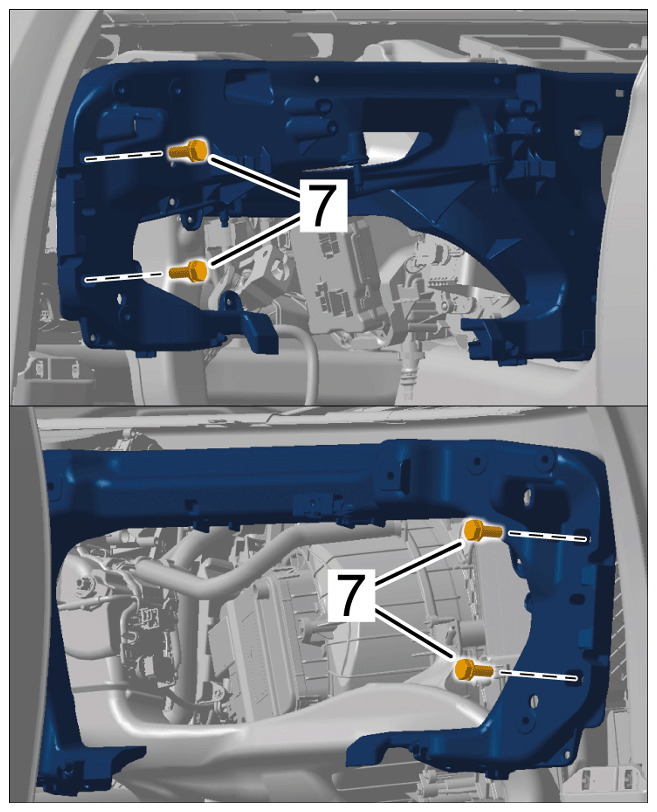

| Screw on dashboard bracket (main bracket) | Item 7 | Tightening torque | 13 Nm (9.5 ftlb.) | ||
|
Screw on dashboard bracket (main bracket) |
|||||
