Installing Outer Side Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• Bonding can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

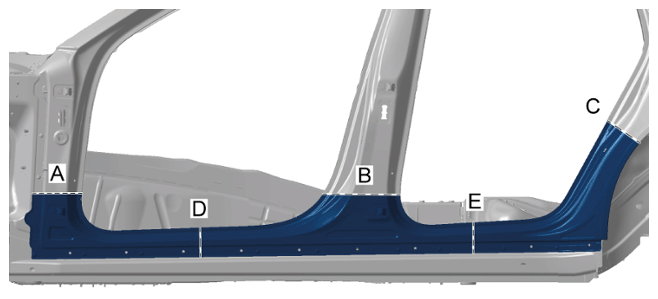

1. Tack on sheetmetal insert used as welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Tack-welding sheetmetal insert

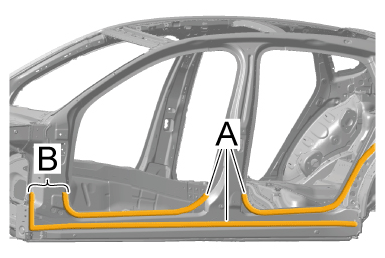

2. Do not apply adhesive in area -A-  .
   1. 2.1 Do not apply adhesive on area -B-  .
   2. 2.2 Do not apply adhesive in area -A-  .

      > Application depth 3,0 mm

      Working with body structural adhesive

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - section on "Information"

      Apply adhesive

3. Fit and secure outer side member.

   Check gap dimensions.

   > 5X00IN GAP DIMENSIONS

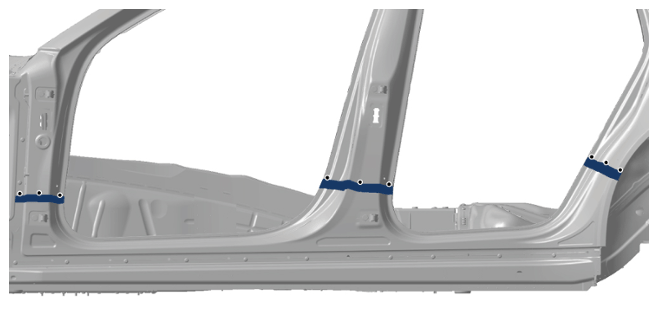

4. Apply aluminium-weld to the outer side member in areas -A, B, C-  .

   > 5X00IN10 WELDING ALUMINIUM

   Applying aluminium-weld to outer side member

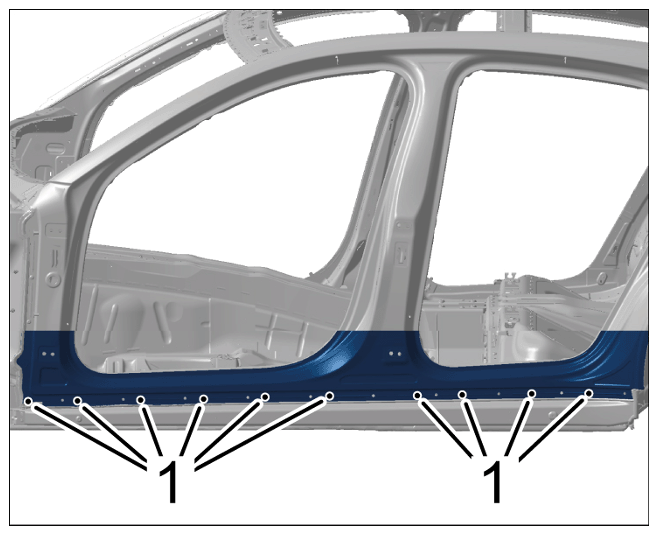

5. Screw in self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Screwing in self-tapping screws

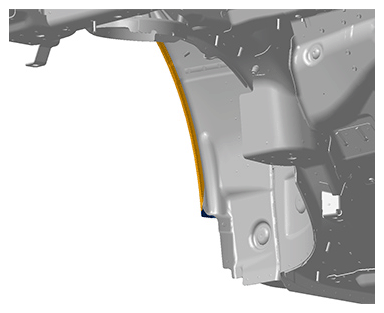

6. Flange the rear wheel arch edge > Flanging edges in rear wheel housing  .

   Flanging edges in rear wheel housing

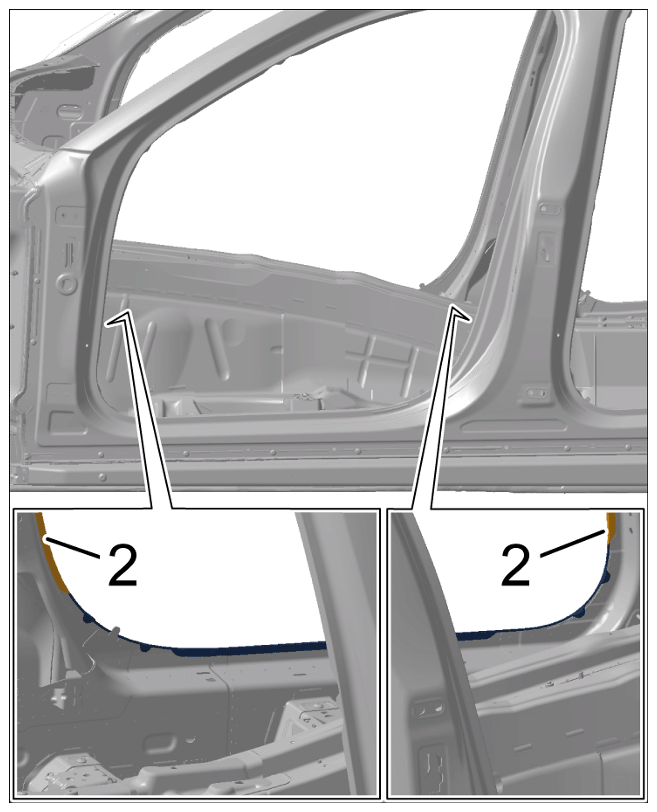

7. Flare edges -2-  in the front door aperture using > VAS 6635/5 - Crimping pliers  .

   Flanging edges in front door aperture

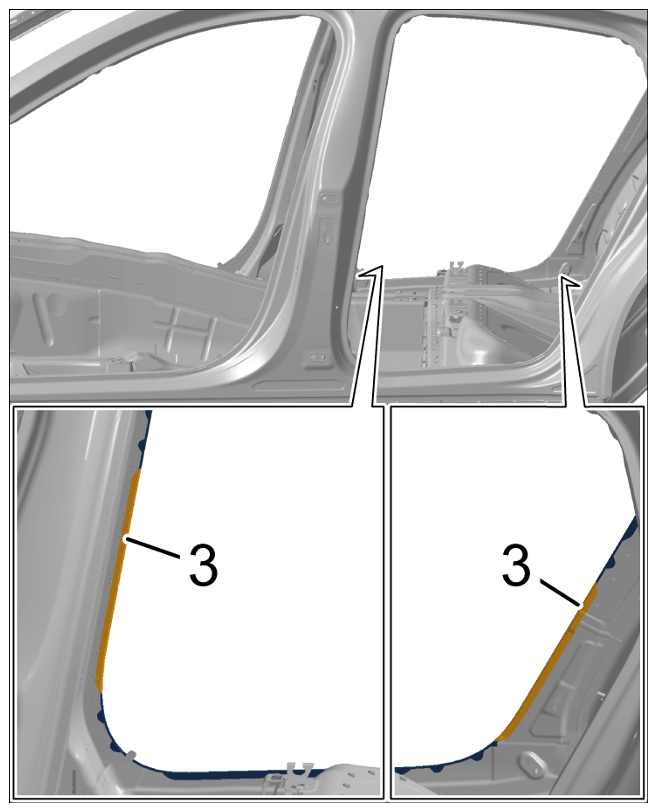

8. Flare edges -3-  in the rear door aperture using > VAS 6635/5 - Crimping pliers  .

Flanging edges in rear door aperture
