Removing Cowl Panel

  1. Drill through clinch points.

    The clinch point in area -A-  is located on the underside of the cowl panel.

    > Diameter 6,6 mm

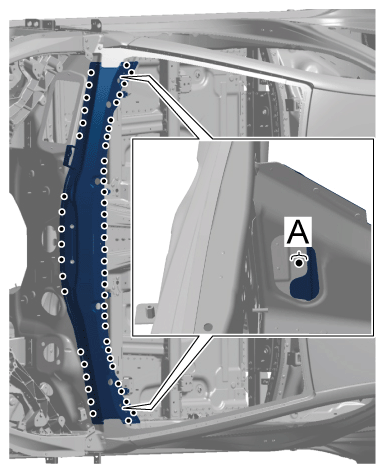

    G16160901

    Clinch points

  2. Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

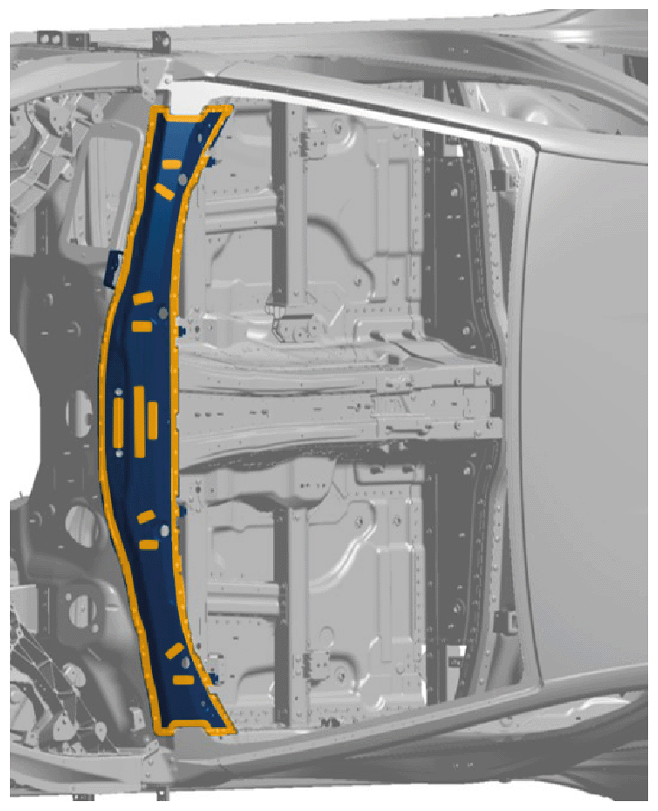

    G16160902

    Bonding areas

  3. Remove cowl panel.
