Installing A-pillar
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

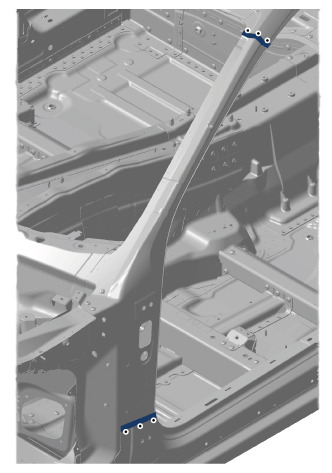

- Tack on sheetmetal insert used as welding backing strip on the body.

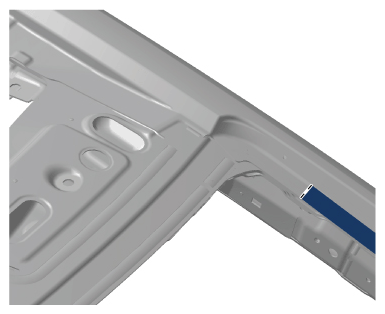

Sheetmetal insert
- Install A-pillar and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

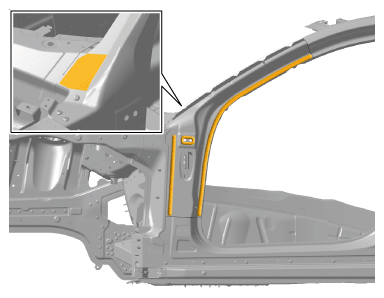

- Apply adhesive on joint areas of the body. > Application depth 3 mm
Working with body structural adhesive
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - section on "Information"
Connection areas
Information
- Apply adhesive evenly over the entire bonding surface.

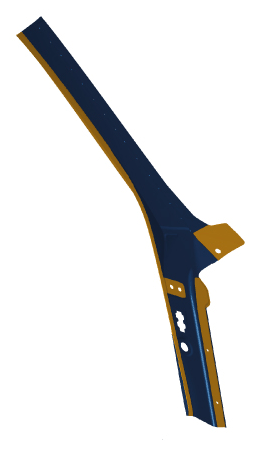

- Apply adhesive on A-pillar. > Application depth 0.5 mm
Working with body structural adhesive
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE - section on "Information"

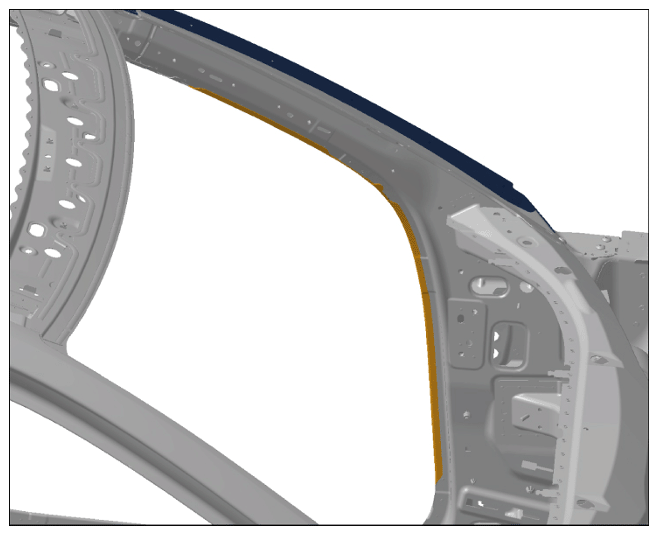

- 4.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
A-pillar

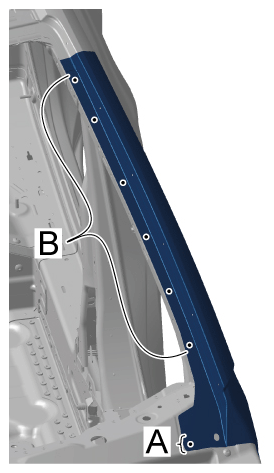

- Rivet in the A-pillar in area -A-
. > BLIND RIVET 999.190.229.01
A-pillar
- Resistance spot-weld the A-pillar in area -B-
.
A-pillar

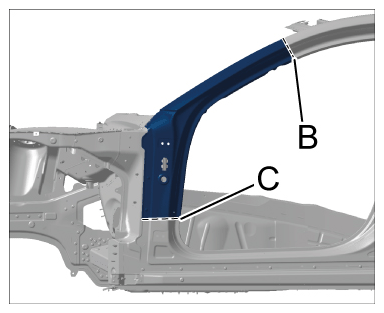

- Apply an aluminium weld to the A-pillar -B and C-
.
> Welding aluminium
A-pillar
- Apply a full weld to the insert at the front side using inert gas.
Side insert

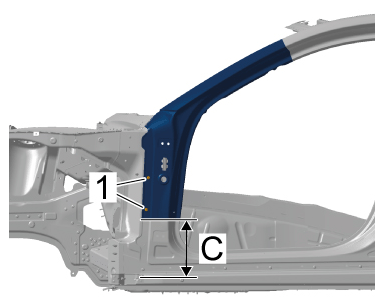

- Screw in self-tapping screws -1-
.
> 5X00IN24 SETTING SELF-TAPPING SCREWS
Self-tapping screws
- Bend over edges in the front door aperture using > VAS 6635/5 - Crimping pliers .
Edges in door aperture
