Preparing Connection Areas Of Body For Installing The Upper Front Roof Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Prepare connection areas of body for installing the upper front roof cross member.

Preparing connection areas of body

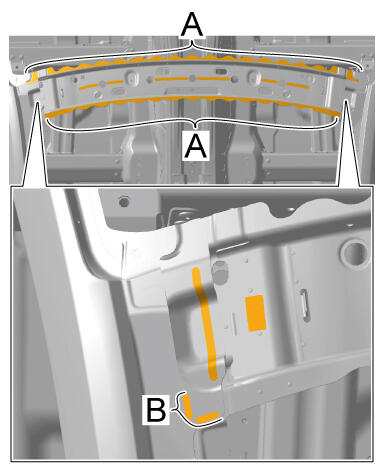

1. 1.1 Prepare marked areas -A-  for resistance spot-welding.
2. 1.2 Prepare marked areas for bonding and riveting.

   > 5X00IN21 Working with body structural adhesive

3. 1.3 Prepare connection area -B-  for welding.
