Removing Front Part Of Front Wheel Housing Liner

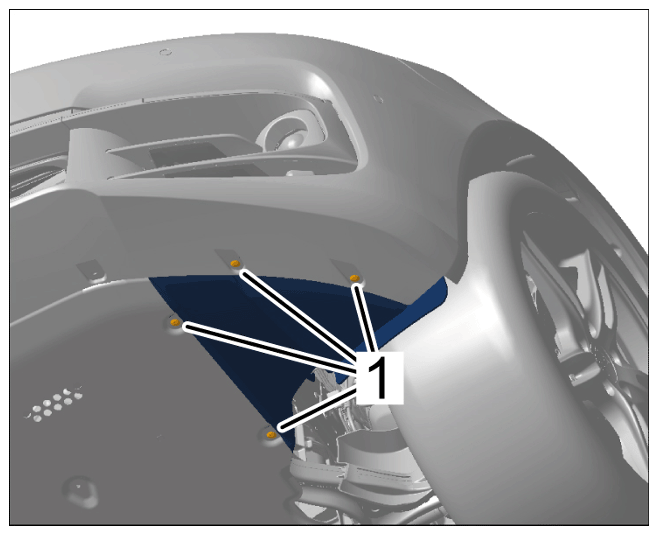

  1. Unscrew screws -1-  on front part of front wheel housing liner at the bottom.
    G16368200Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on front part of front wheel housing liner at the bottom

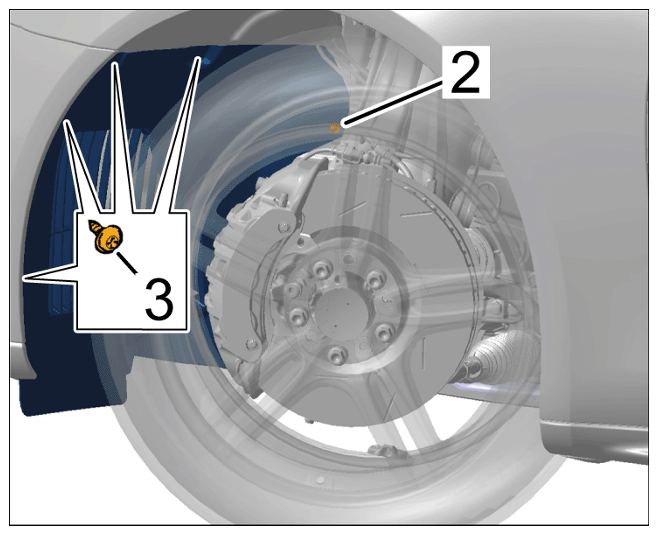

  2. Unscrew nut -2-  and screws -3-  on front part of front wheel housing liner.
    G16368201Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front part of front wheel housing liner

  3. Remove front part of front wheel housing liner.
