Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

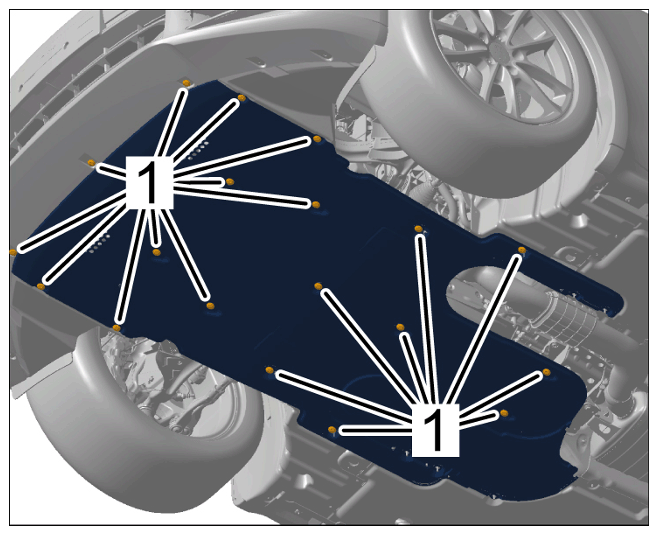

Screws for cover on front underbody	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for cover on front underbody

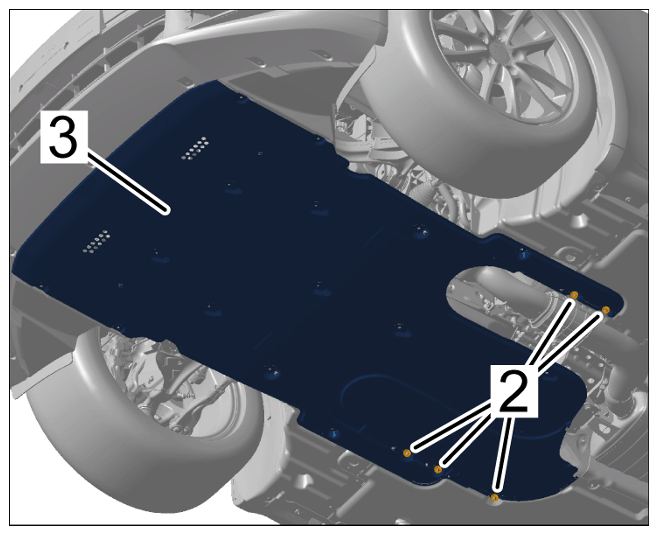

Nuts for cover on front underbody	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for cover on front underbody

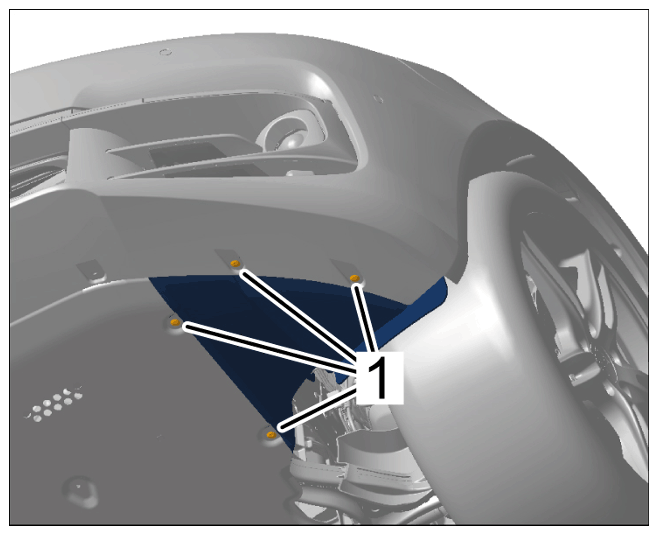

Screws on front part of front wheel housing liner, bottom	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on front part of front wheel housing liner at the bottom

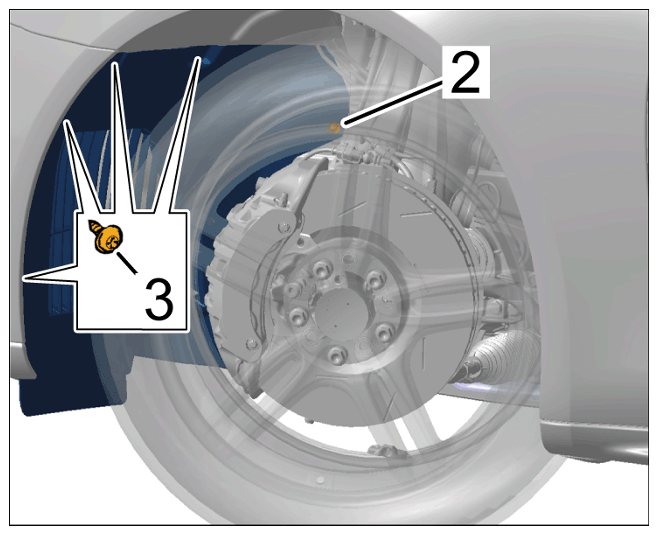

Nut and screws on front part of front wheel housing liner	Items 2 and 3	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front part of front wheel housing liner

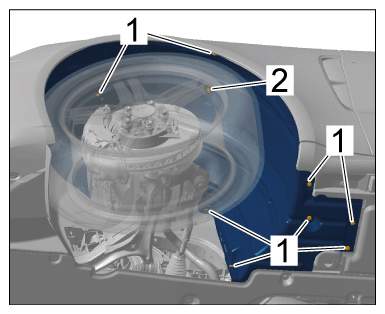

Screws and nut	Items 1 and 2	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear part of front wheel housing liner
