Removing Front Wing

Information

The number of electric plug connections will vary depending on equipment.

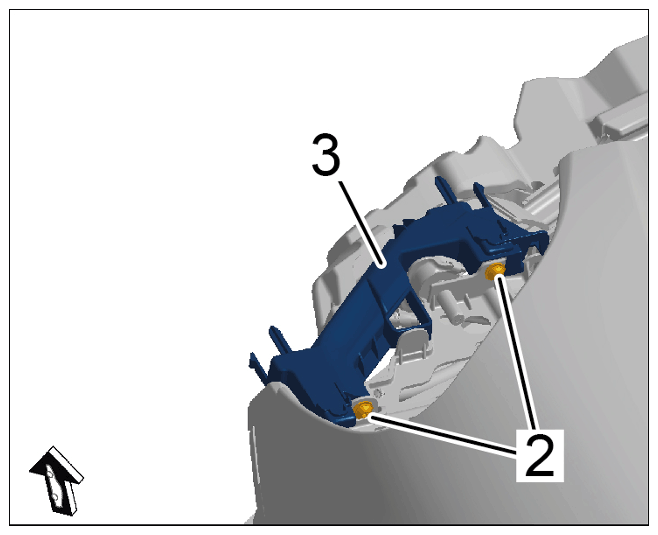

1. Unscrew screws -2-  and remove headlight mounting -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing headlight mounting

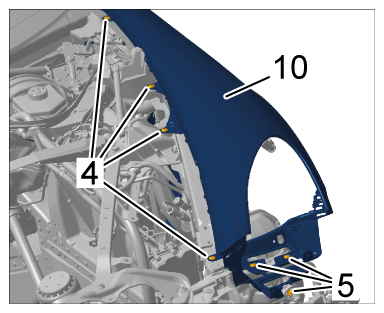

2. Unscrew screws -4-  and screws -5-  on the wing -10-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

3. Only for wing on driver's side:

   Disconnect cable for front lid lock at the connection point and disengage it from the wing.

   > WM, 551419 REMOVING AND INSTALLING CABLE FOR FRONT LID LOCK

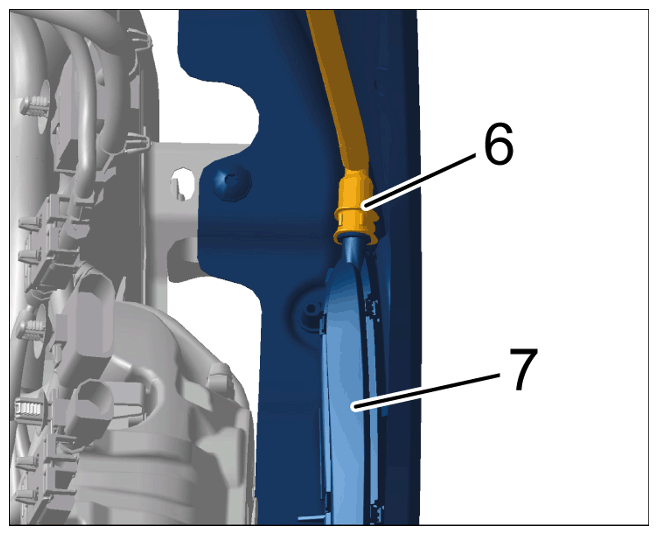

4. Unclip hose for headlight ventilation -6-  from side air intake grille -7-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping hose for headlight ventilation

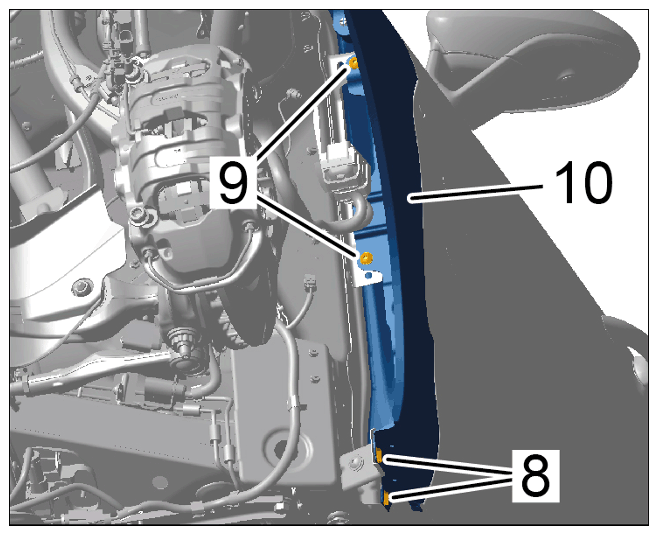

5. Unscrew nuts -8-  on the holder at the bottom and screws -9-  at the A-pillar.
   Fig 1: Front Wing Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing front wing

   Information

   Remove the wing carefully so as not to damage the door.

6. Remove front wing.
