Removing Spring Strut Mount

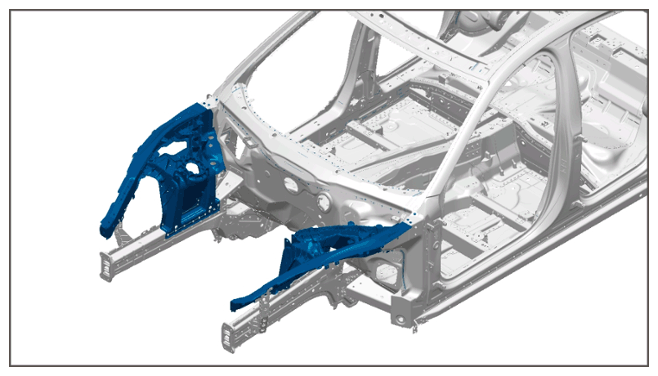

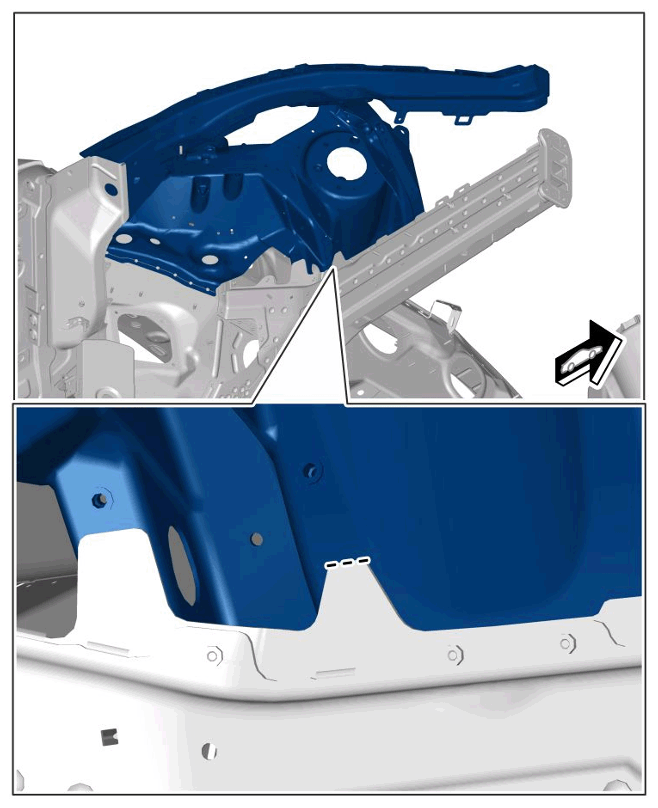

Fig 1: Spring Strut Mount Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of spring strut mount

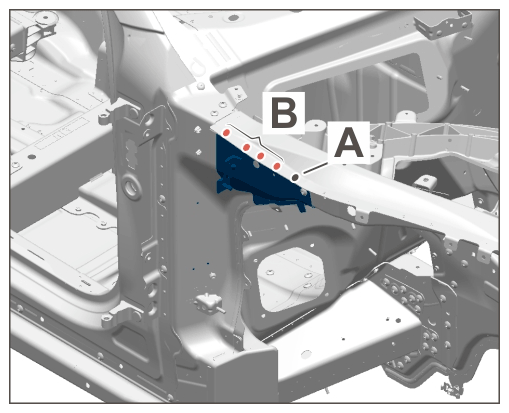

1. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

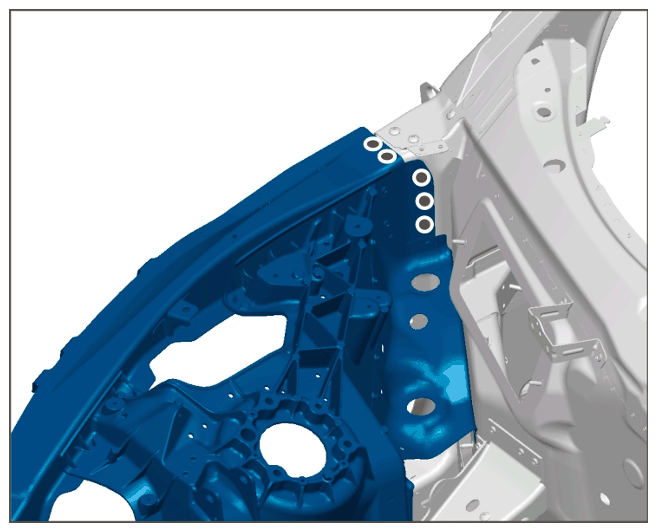

   Disconnecting connection points

   1. 1.1 Remove punch rivets -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   2. 1.2 Drill through clinch points -B-  using a > Diameter 6.6 mm  carefully.

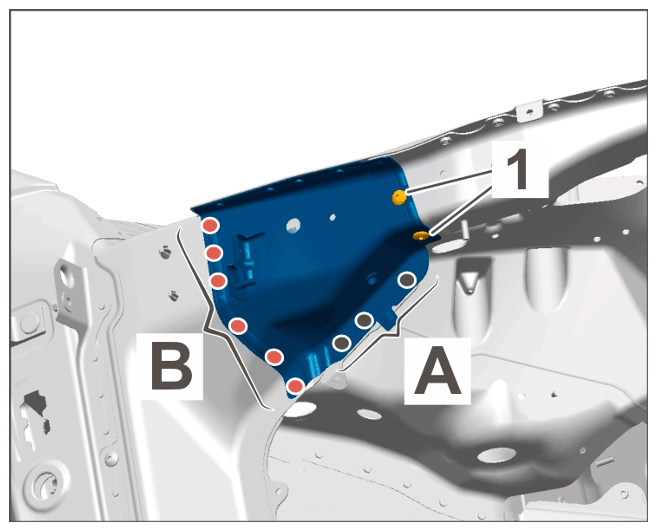

2. Disconnect connection points.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connection points

   1. 2.1 Unscrew self-tapping screws -1-  .
   2. 2.2 Remove punch rivets -A-  using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   3. 2.3 Drill out spotwelds -B-  .

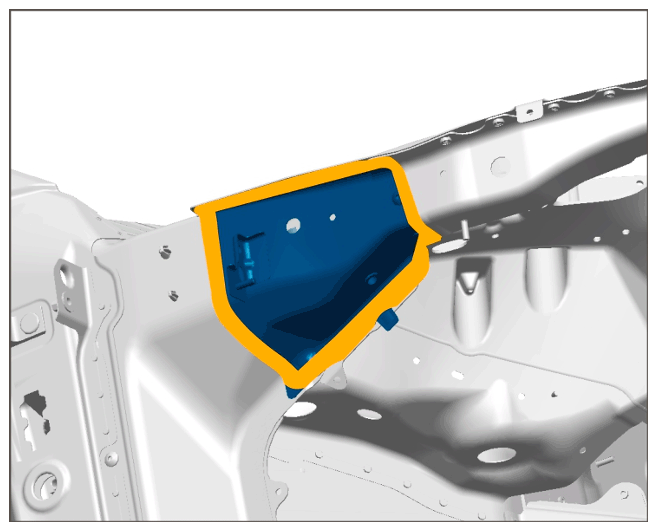

3. Heat up bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating up bonding areas

4. Remove closing element for longitudinal member.

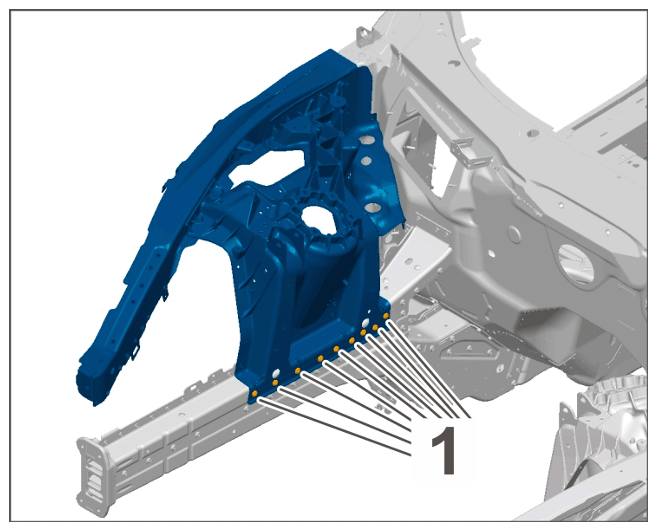

5. Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing self-tapping screws

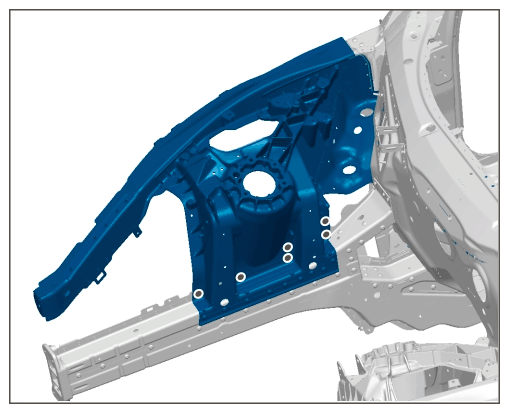

6. Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing punch rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing punch rivets

   Information

   Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

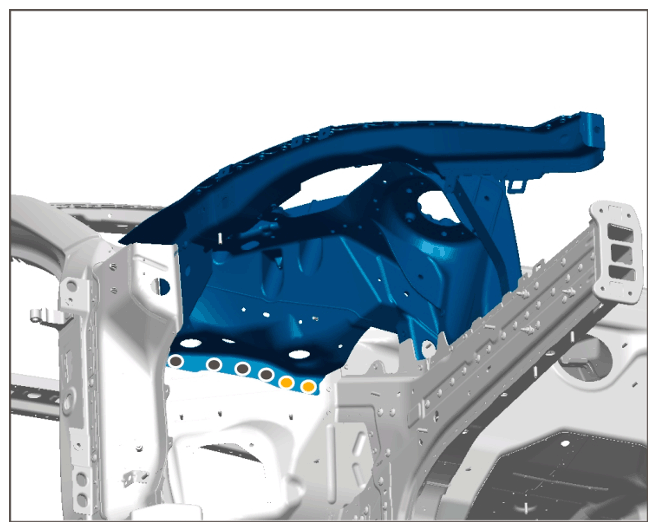

7. Drill through clinch points using a > Diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out clinch points

8. Separate ground connection from longitudinal member to spring strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separating ground connection

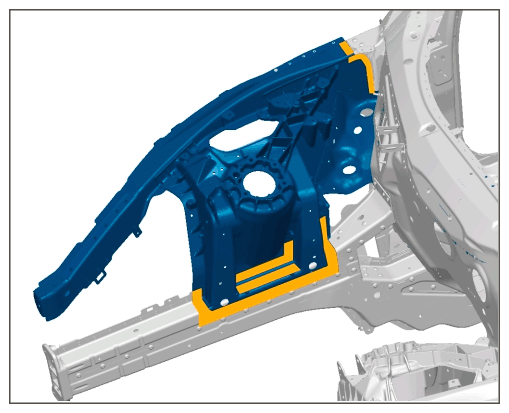

9. Heat bonding areas. > V.A.G 1416 - Hot-Air Blower

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating up bonding areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating up bonding areas

10. Remove spring strut mount.
