Disassembling Lock Carrier

1. Remove air cleaner housing.

   > 242519 Removing and installing air cleaner housing

2. Remove front lock lower part.

   > WM, 551719 REMOVING AND INSTALLING FRONT LOCK LOWER PART

3. Remove pedestrian protection.

   > 697019 Removing and installing pedestrian protection

4. Remove cooling-air flaps.

   > 193519 Removing and installing cooling-air flaps

5. Remove front bumper.

   > 631019 Removing and installing front bumper

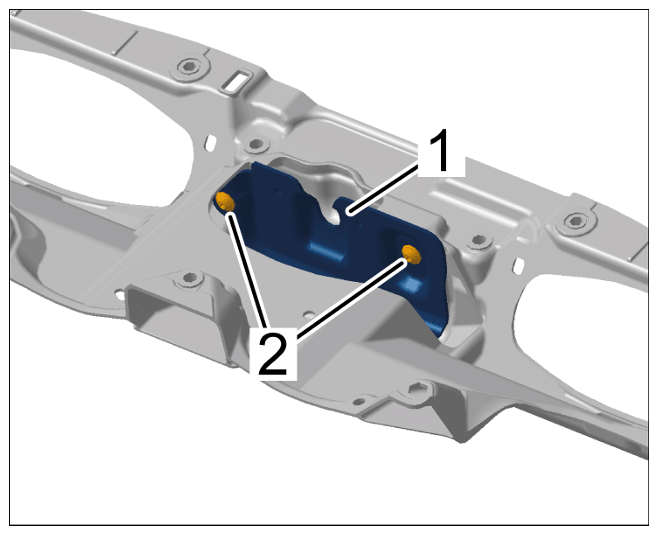

6. Unscrew screws -2-  and remove sheetmetal panel -1-  on lower part of lock.
   Fig 1: Lock Carrier Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

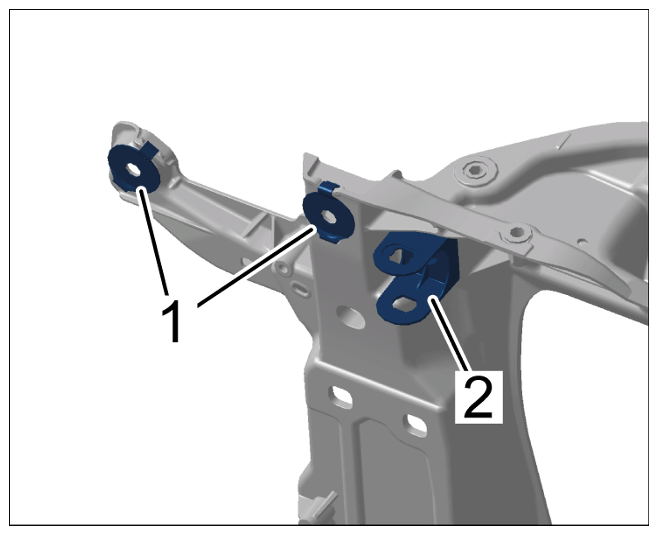

7. Remove washers -1-  at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing washers

8. Remove radiator module holder -2-  at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing radiator module holder
