Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...
Screw securing reinforcement to module carrier	Item 1	Tightening torque	20 Nm (15 ftlb.)

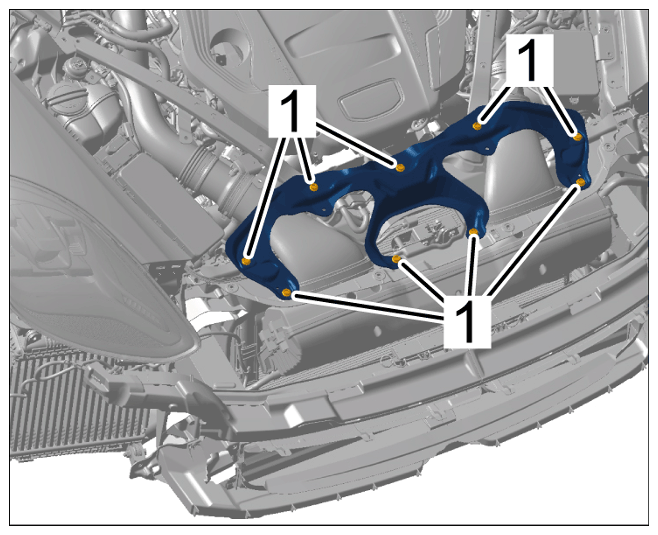

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Reinforcement on module carrier
Screw for front bumper	Item 4	Tightening torque	50 Nm (37 ftlb.)	+/- 15 %

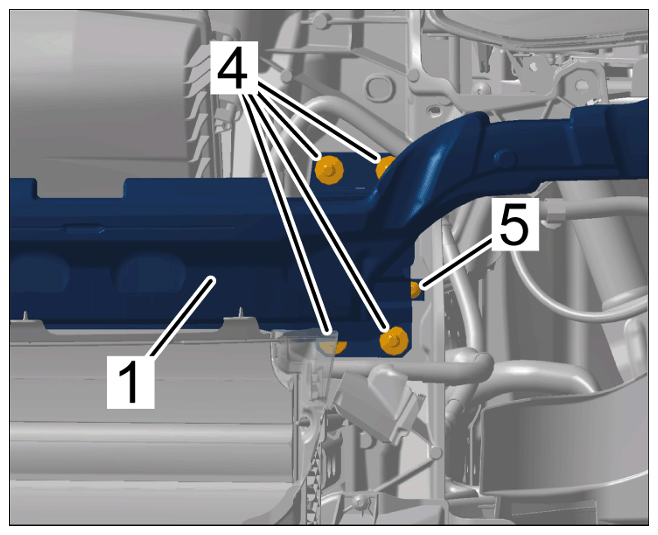

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front bumper
Screw for lock carrier	Item 1	Tightening torque	6 Nm (4.5 ftlb.)

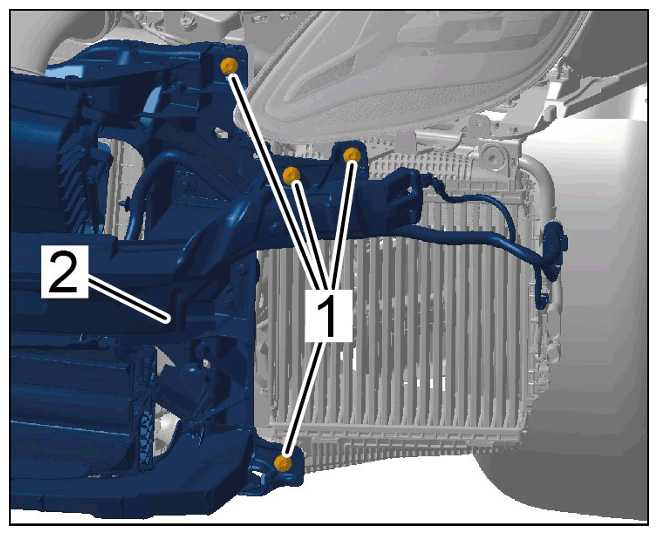

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for lock carrier
Screws for headlight mounting point	Item 2	Tightening torque	5.5 Nm (4 ftlb.)

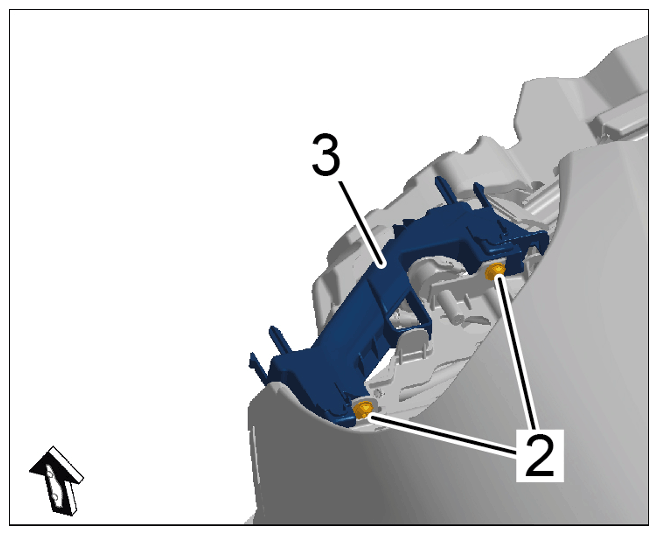

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for headlight mounting point
Fastening screws for lower radiator mounting	M6 x 30	Tightening torque	13 Nm (9.5 ftlb.)
