Installing Front Level Sensor

  1. Installation is performed in reverse order. Pay particular attention to the following:

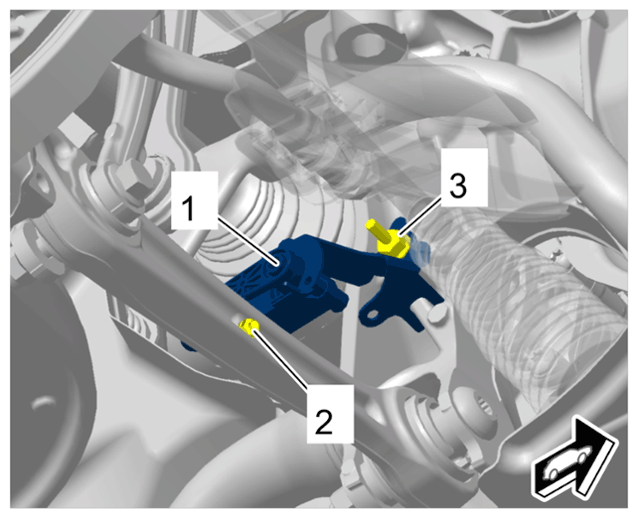

    G15153978Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front level sensor

    1. 1.1 Tighten nut -1-  .

      > Tightening - torque 20 Nm (15 ftlb.)

    2. 1.2 Tighten nut -2-  .

      > Tightening torque 9 Nm
