Removing Camshaft Controller Actuator (V6 Turbo)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. For engine with particle filter:

   Remove differential pressure sensor lines -1-  with differential pressure sensor -2-  .

   1. 1.1  Unscrew union nuts from differential pressure sensor lines -3-  .
   2. 1.2  Disconnect differential pressure sensor lines -1-  .
   3. 1.3  Release and disconnect cable plug -4-  .
   4. 1.4  Unscrew screws for differential pressure sensor holder -5-  .
   5. 1.5  Remove differential pressure sensor lines -1-  with differential pressure sensor -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

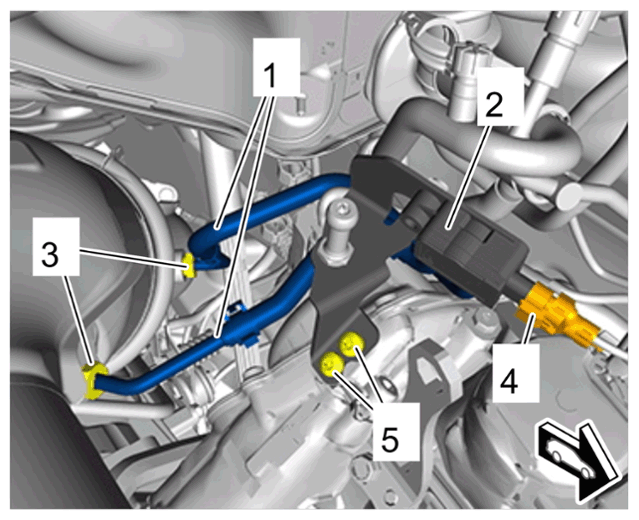

   Differential pressure line with differential pressure sensor

2. Only for removing camshaft controller actuator on intake side of cylinder bank 1:

   Disconnect coolant hose -1-  .

   1. 2.1  Release and pull off quick-connecting lock -2-  .
   2. 2.2  Set coolant hose -1-  aside.
   3. 2.3  Collect emerging coolant using suitable aids and close off line connections using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

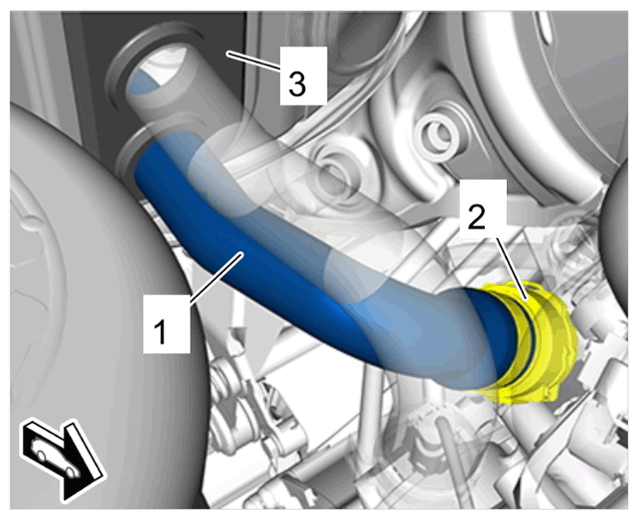

   Coolant hose

   Information

   The procedure for removing and installing is descrited for one side as an example. The procedure for the other side is almost identical.

3. Remove camshaft controller actuator -1-  .
   1. 3.1  Release and disconnect cable plug -2-  .
   2. 3.2  Only for camshaft controller actuator on outlet side.
      1. 3.2.1  Unscrew nuts on heat shield for camshaft controller actuator.
      2. 3.2.2  Remove heat shield on camshaft controller actuator on outlet side.
   3. 3.3  Unscrew and remove screws -3-  .
   4. 3.4  Remove camshaft controller actuator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

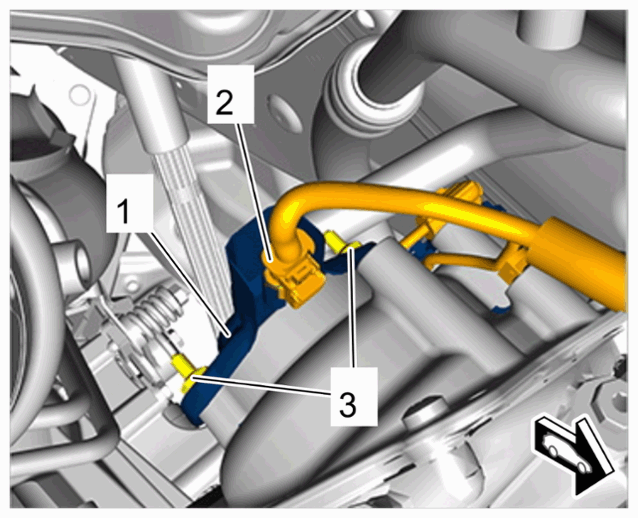

   Camshaft controller actuator
