Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove crankcase cover.
  2. Remove balance weight -2-  .
    1. 2.1  Get another person to counter the crankshaft if necessary.
    2. 2.2  Counter the crankshaft using > T40049 - special wrench  and loosen and unscrew screw -1-  .
    3. 2.3  Pull balance weight -2-  off the balance shaft.

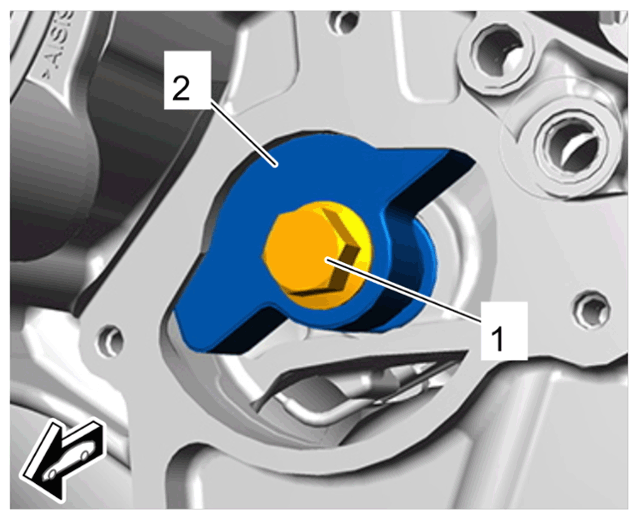

    G15150312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Balance weight screw

  3. Remove balance shaft bracing wheel.
