Removing Front-Axle Support

Information

Risk of damage to chassis components

• If the front-axle carrier, steering gear or front-axle support is not fitted correctly, never lower the vehicle onto its wheels!
• Supporting the vehicle on the front-axle carrier or on the front-axle support (e.g. using a jack) is not permitted!
• If the vehicle needs to be moved, the front-axle support must be installed beforehand using the old bolts and square nuts and must then be tightened to the specified torque without additional torque angle.

1. Remove heat insulation -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

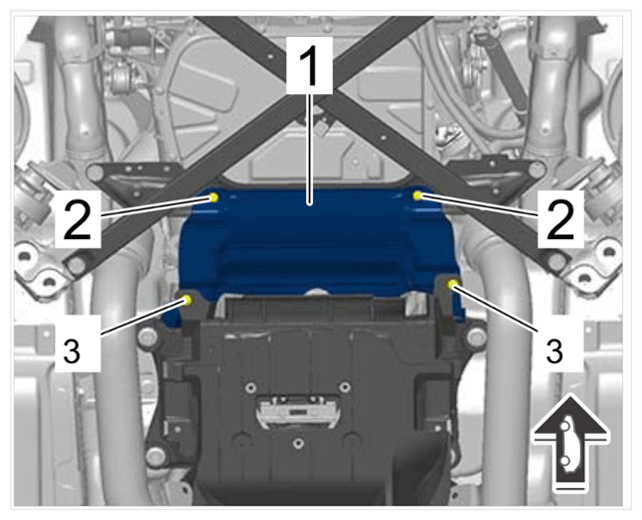

   Heat insulation

   1. 1.1 Unclip clips -2-  .
   2. 1.2 Unscrew screws on heat insulation -3-  .
   3. 1.3 Guide out and remove heat insulation -1-  .
2. Remove front-axle support -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

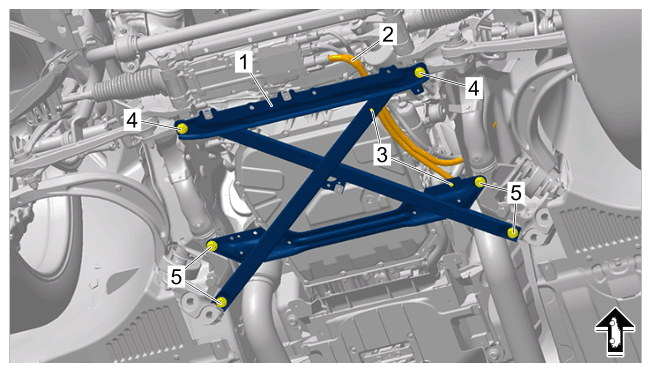

   Front-axle support

   1. 2.1 Disconnect electric line -2-  at the positions -3-  from front-axle carrier -1-  .
   2. 2.2 Unscrew screws -4 and 5-  and remove front-axle support -1-  .
