Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install both lower trailing arms.

    > 401719 - REMOVING AND INSTALLING LOWER TRAILING ARM - PORTION ON "INSTALLING"

  2. Install front level sensors.

    > 431855 - REPLACING FRONT LEVEL SENSOR

  3. Install power-steering gear.

    > 489019 - REMOVING AND INSTALLING POWER-STEERING GEAR - PORTION ON "INSTALLING"

  4. Install front anti-roll bar.

    > 407719 - REMOVING AND INSTALLING FRONT ANTI-ROLL BAR - PORTION ON "INSTALLING"

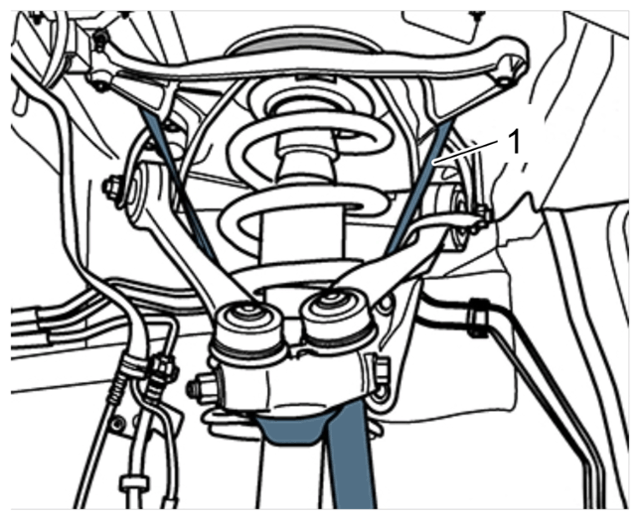

  5. Remove tension straps -1-  from wheel bearing housings.
    G15155754Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel bearing housing mounting

  6. Remove engine safety device.

    > 1001IN - SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)

  7. Perform suspension alignment.

    > 449503 - PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
