Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing inner part of door handle to lock cylinder Item 2 Tightening torque 18 Nm (13 ftlb.)

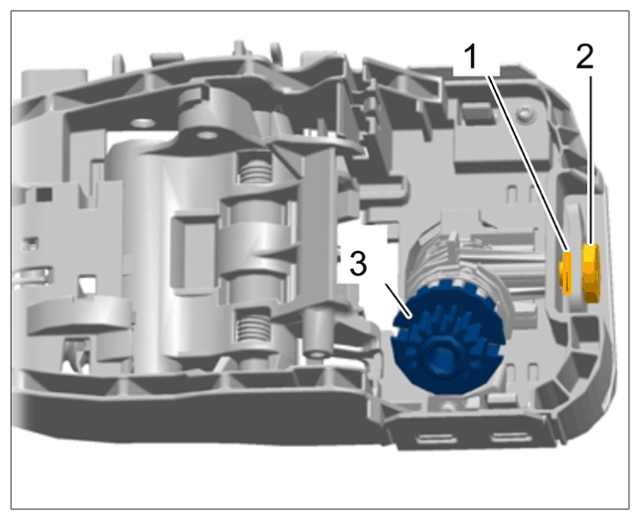

G15159143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lock cylinder
