Removing Control Unit For Lane Change Assist

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

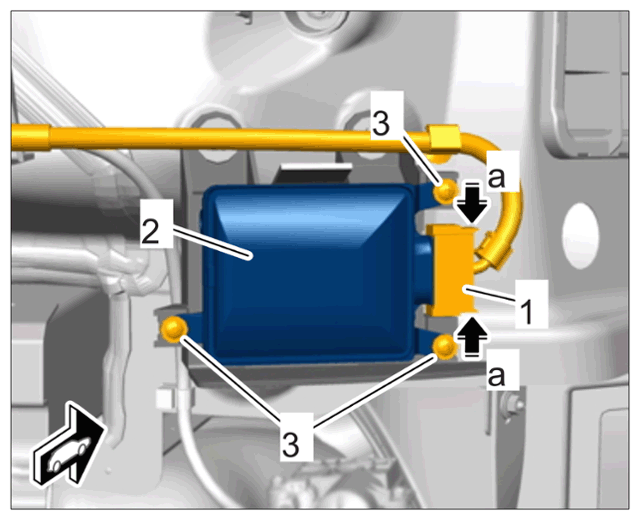

2. Release and pull off electric plug connection -1-  (-arrows a-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Unscrew fastening screws -3-  and remove Lane Change Assist control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lane Change Assist control unit
