Removing Brake Light Switch

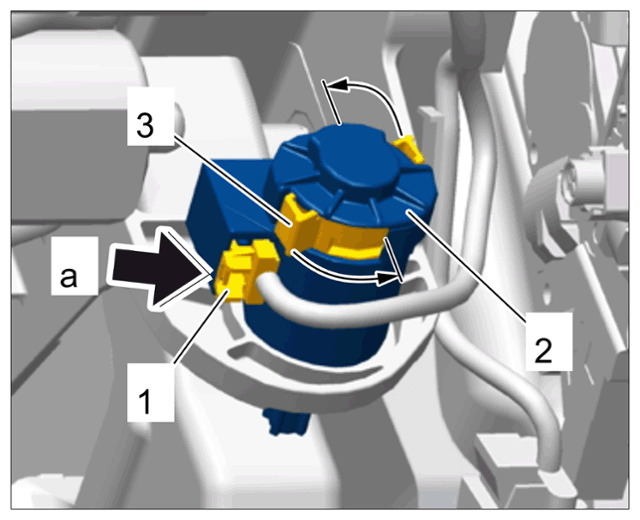

1. Release electric plug connection -1-  (-arrow a-  ) and pull it off the brake light switch -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake light switch

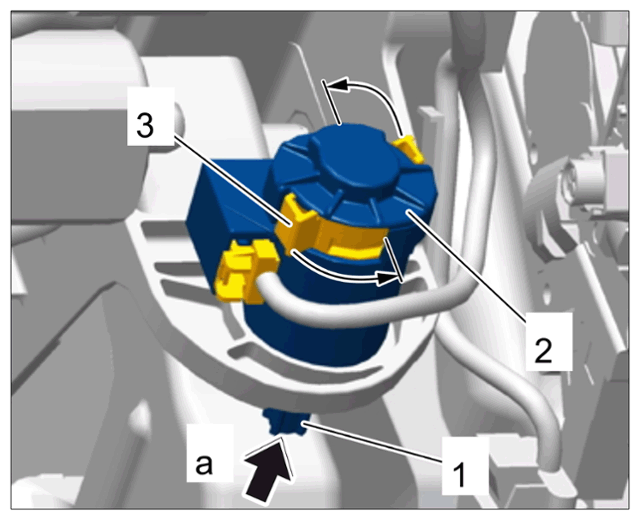

2. Press tappet -1-  fully into the brake light switch -2-  (-arrow a-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tappet

3. Disengage locking ring -3-  and turn it approx. 60° anti-clockwise until it engages.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking ring

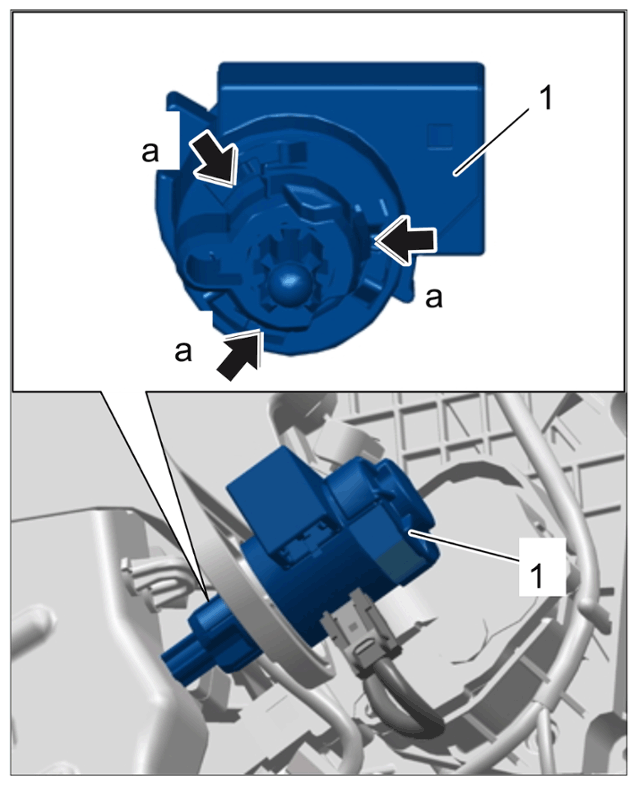

4. Press locking lugs -arrows a-  and pull the brake light switch -1-  to the rear and out of the pedal bearing block.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake light switch
