WM, 519419 Removing And Installing Cover For Rear Underbody: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

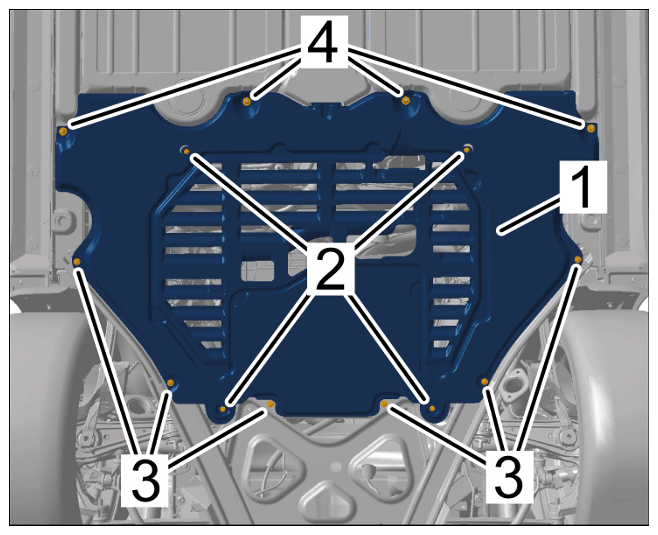

TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screws for rear underbody cover | Item 2 | Tightening torque | 9.7 N.m (7.5 ft.lb) | ||
|
Cover for rear underbody |
|||||
| Screws for rear underbody cover | Item 3 | Tightening torque | 3 N.m (2 ft.lb) | ||
|
Cover for rear underbody |
|||||
| Nuts for rear underbody cover | Item 4 | Tightening torque | 2.5 N.m (1.75 ft.lb) | ||
|
Cover for rear underbody |
