WM, 51922327 Installing Front Cover (Fin): Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

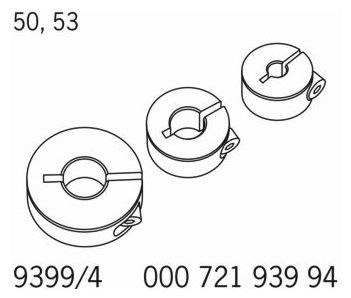

| Set of adjusting rings | Special tool | > 9399/4 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

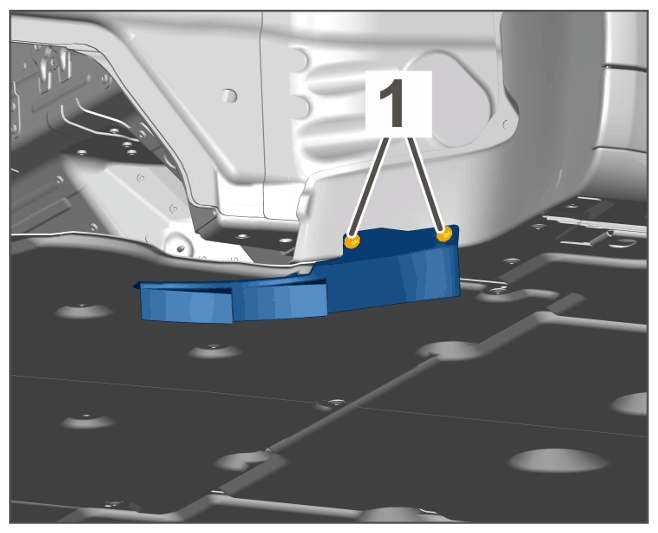

| Screws for front cover (fin) | Item 1 | Tightening torque | 3.2 N.m (2.1 ft.lb) | ||
|
Screws for front cover (fin) |
|||||

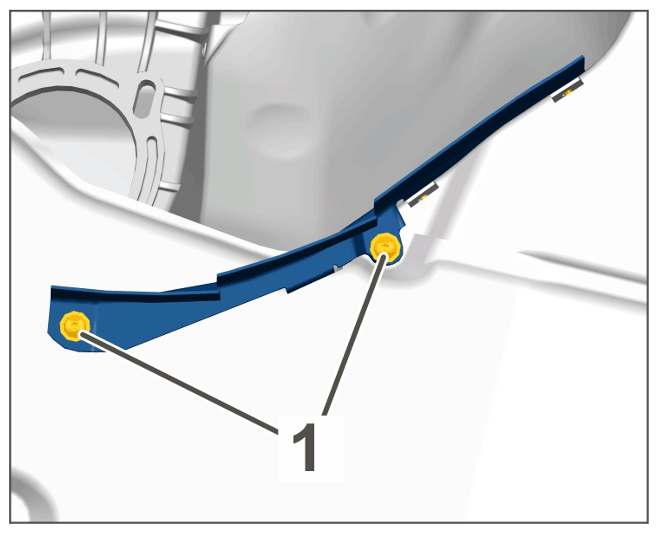

| Screws for front cover (fin) | Item 1 | Tightening torque | 3.2 N.m (2.1 ft.lb) | ||
|
Screws for front cover (fin) |
|||||
| Bore hole | Diameter | 7.5 mm | |||
| Bore hole | Diameter | 7.5 mm | |||
| Bore hole | Diameter | 6.0 mm |
