WM, 518941 Threaded Bushes: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

PART DESCRIPTION

Part number	Description Addition	Quantity
> 99950426601	THREADED BUSH 999.504.266.01	1
> 99950426201	THREADED BUSH 999.504.262.01	1
> 99950426201	THREADED BUSH 999.504.262.01	1
> 99950428301	THREADED BUSH 999.504.267.01	1

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image

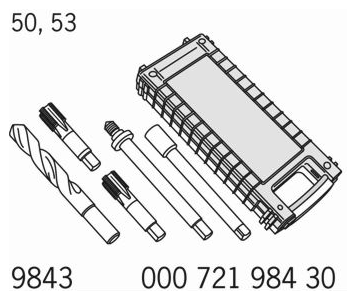

Thread repair kit	Special tool	> 9843	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

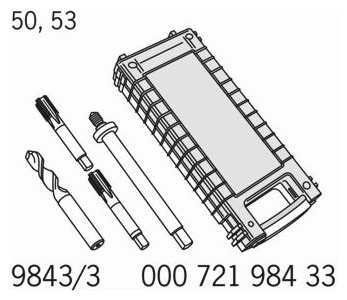

Thread repair kit	Special tool	> 9843/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-Sert thread repair kit	Commercially available tool	> Nr.122-1 Pos.1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-sert thread repair kit	Special tool	> 9394	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

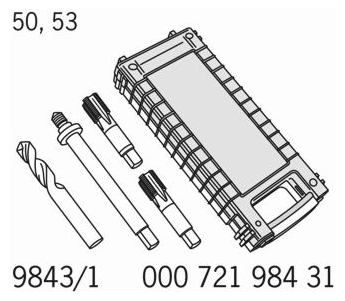

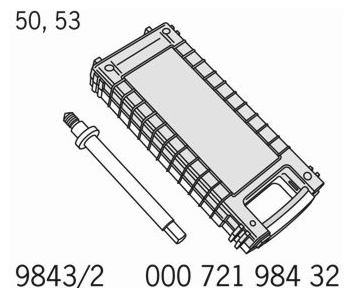

thread repair kit	Special tool	> 9843/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
thread repair kit	Special tool	> 9843/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Time-Sert thread repair kit	Commercially available tool	> Nr.122-1 Pos.2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value

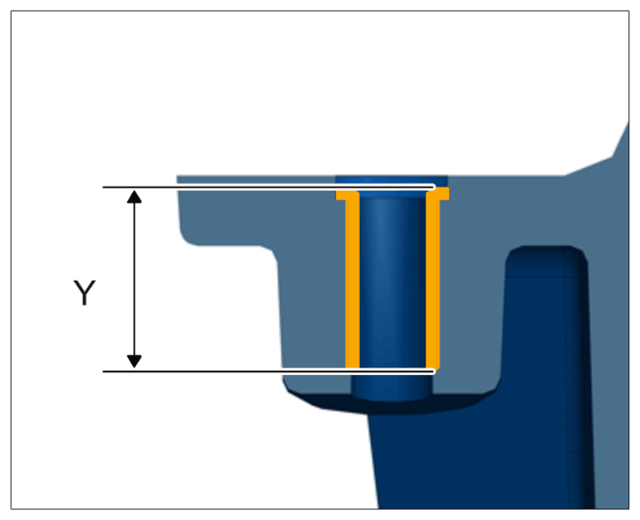

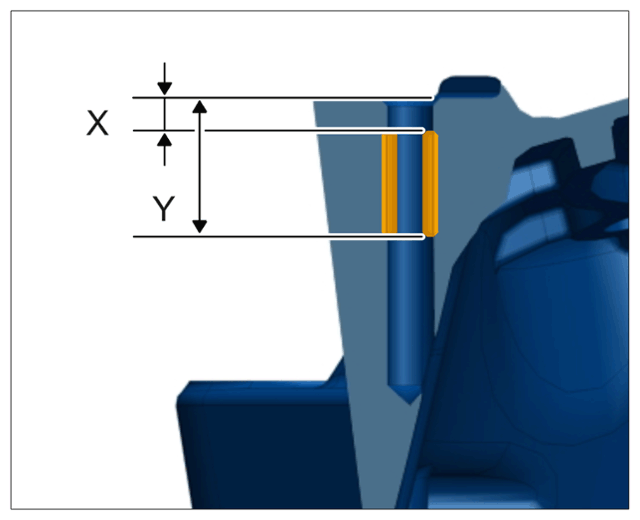

Thread 1 and 2	Dimension Y	Length	33 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair
Thread 1 and 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair

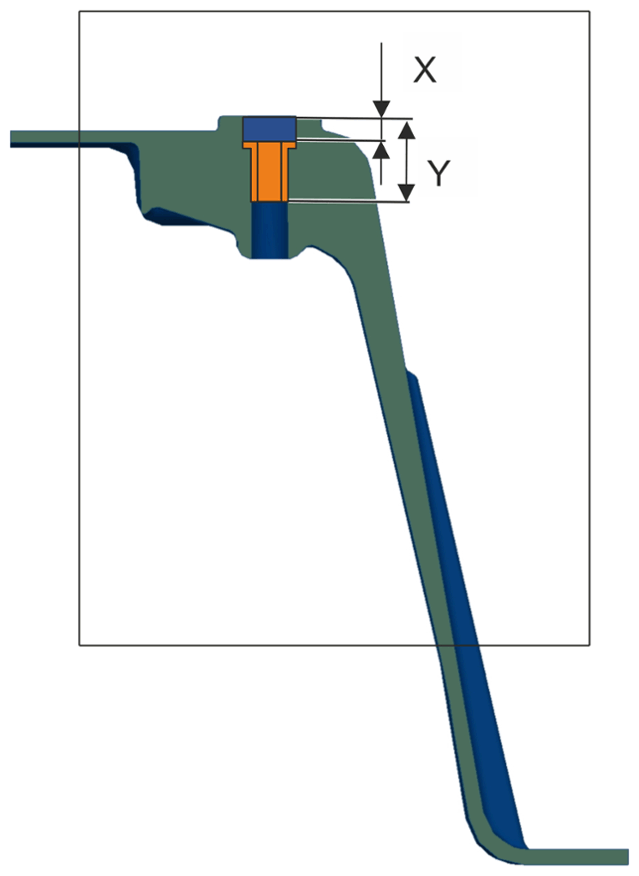

Thread 1	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 3	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

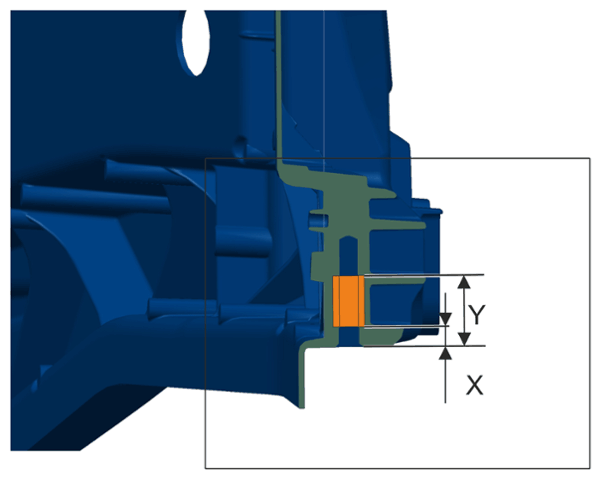

Thread 1	Dimension Y	Length	25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for engine mount mounting

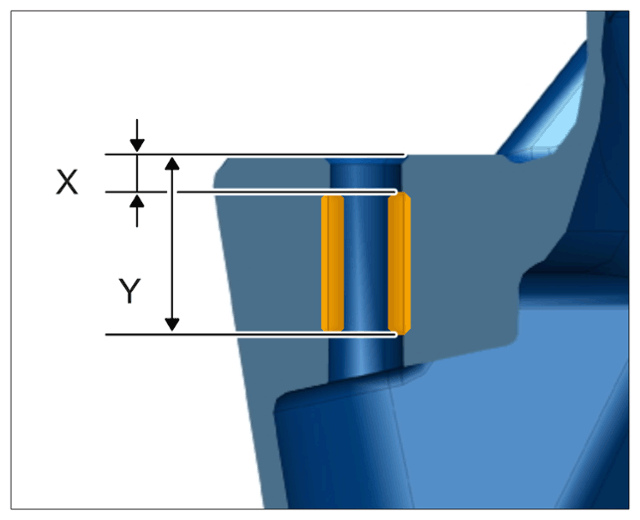

Thread 1 and 2	Dimension Y	Length	37 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

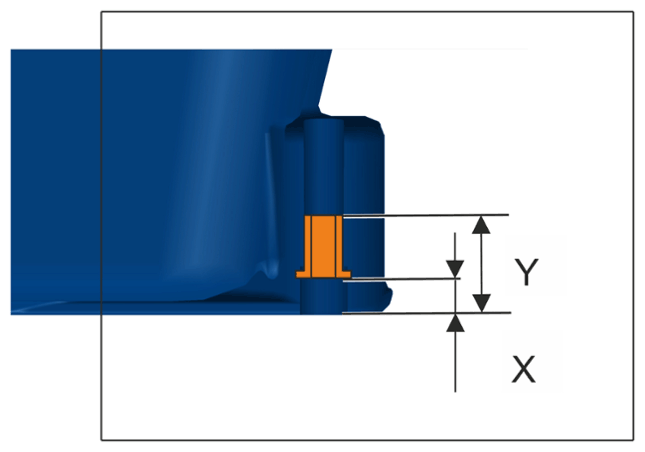

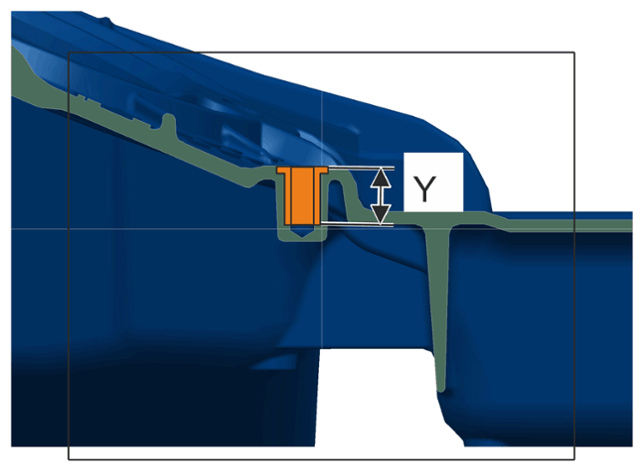

Thread 1	Dimension Y	Length	16.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on impact absorber mount

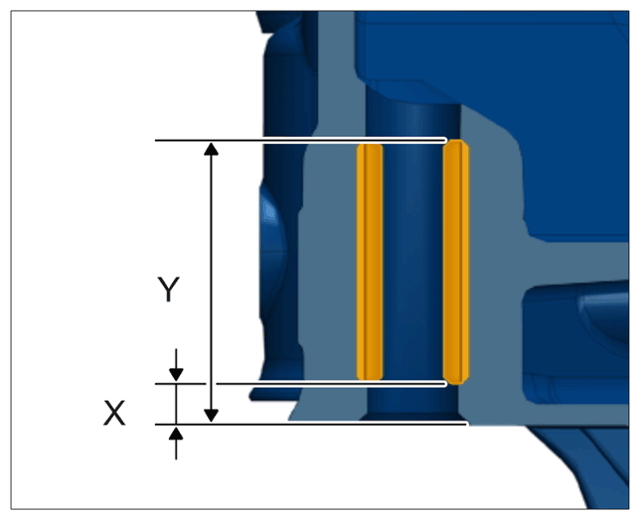

Thread 1 and 2	Dimension Y	Length	30 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Thread repairs on threaded joint for roll-over bar
Thread 1 and 2	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on threaded joint for roll-over bar
Thread 1	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
