WM, 516819 Removing And Installing Dashboard Bracket: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

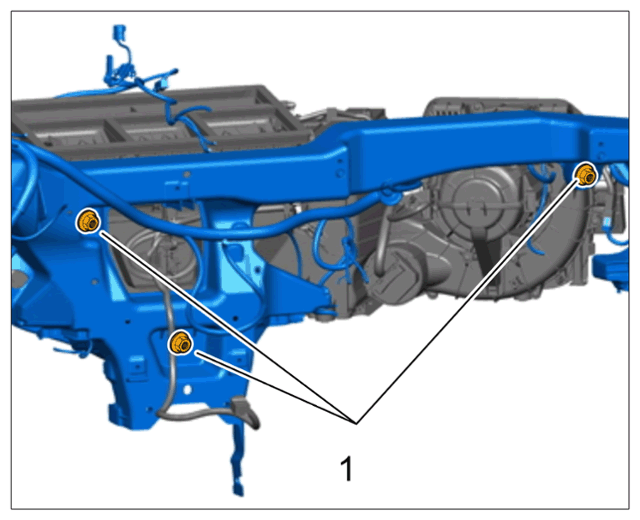

| Heating/fresh-air unit to dashboard bracket | Tightening torque | 8 N.m (6 ft.lb) | |||
|
Fastening nuts for heating/fresh-air unit |
|||||

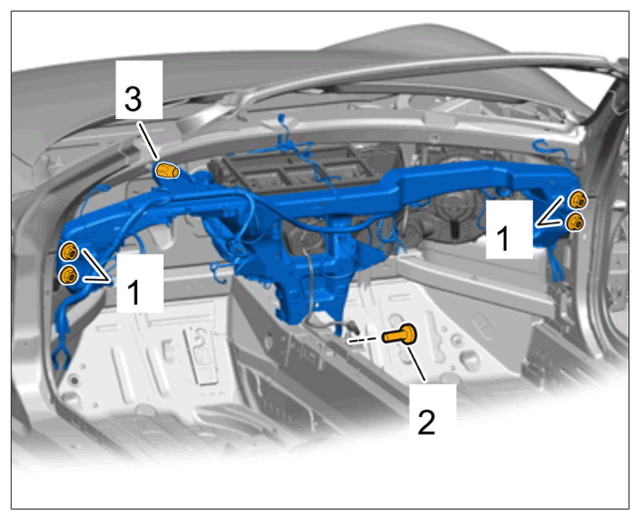

| Fastening screw securing dashboard bracket to holder | Item 1 | Tightening torque | 23 N.m (17 ft.lb) | ||
|
Mounting for dashboard bracket |
|||||
| Fastening screw securing dashboard bracket to tunnel | Item 2 | Tightening torque | 23 N.m (17 ft.lb) | ||
| Fastening screw securing dashboard bracket to firewall | Item 3 | Tightening torque | 23 N.m (17 ft.lb) | ||

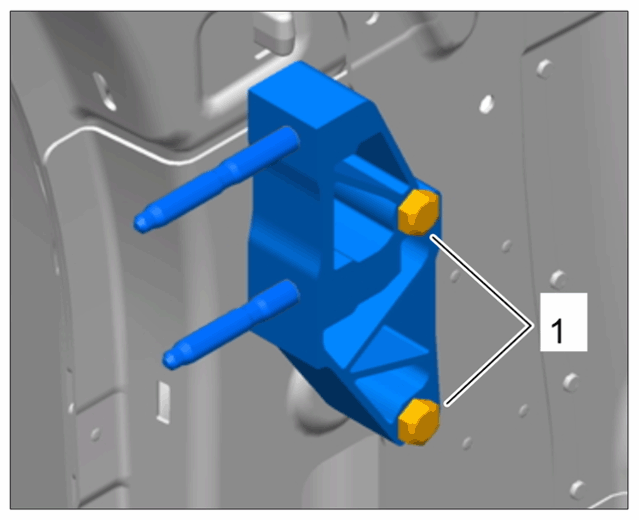

| Fastening screw securing holder for dashboard bracket to body | Tightening torque | 23 N.m (17 ft.lb) | |||
|
Mounting for holder for dashboard bracket |
