WM, 559119 Removing And Installing Rear Lid Hinge: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

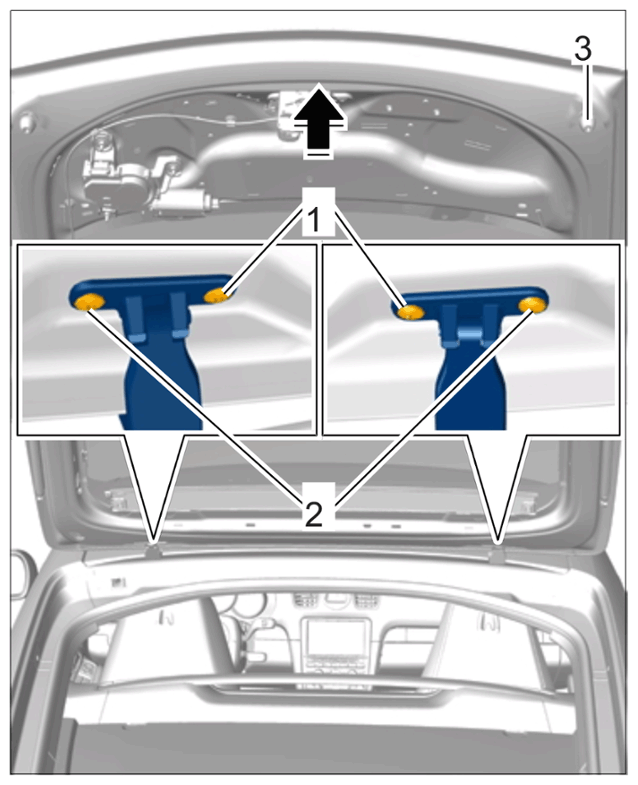

| Fastening screws securing lid hinge to lid | Item 1 + 2 | Tightening torque | 10 N.m (7.5 ft.lb) | ||
|
Removing rear lid |
|||||

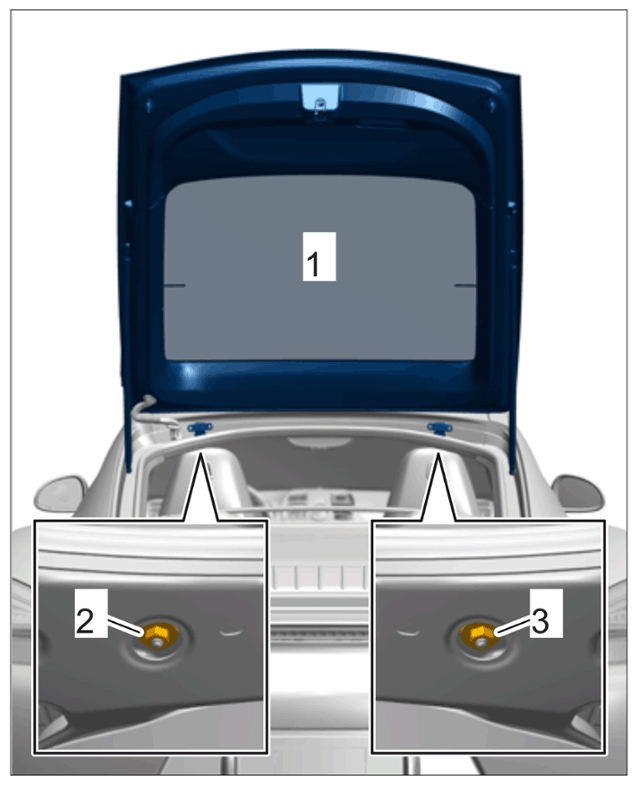

| Fastening screw securing lid hinge to bodyshell | Item 2 + 3 | Tightening torque | 23 N.m (17 ft.lb) | ||
|
Removing lid hinge |
