WM, 559015 Adjusting Rear Lid: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

TOOL DESCRIPTION

Tool denomination	Type	Tool number	Image
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6937	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value
Fastening screws securing lid hinge to lid	Item 1 + 2	Tightening torque	10 N.m (7.5 ft.lb)

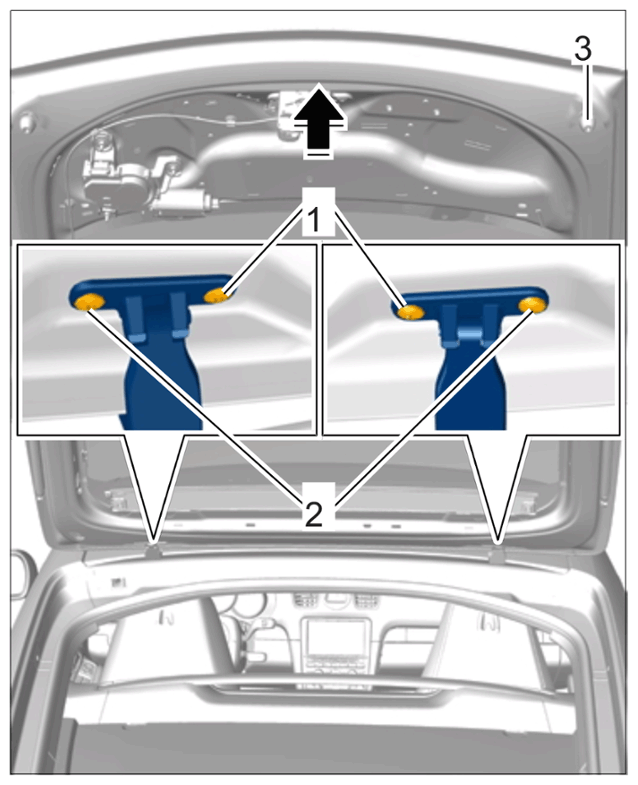

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear lid
Fastening screw securing lid hinge to bodyshell	Item 2 + 3	Tightening torque	23 N.m (17 ft.lb)

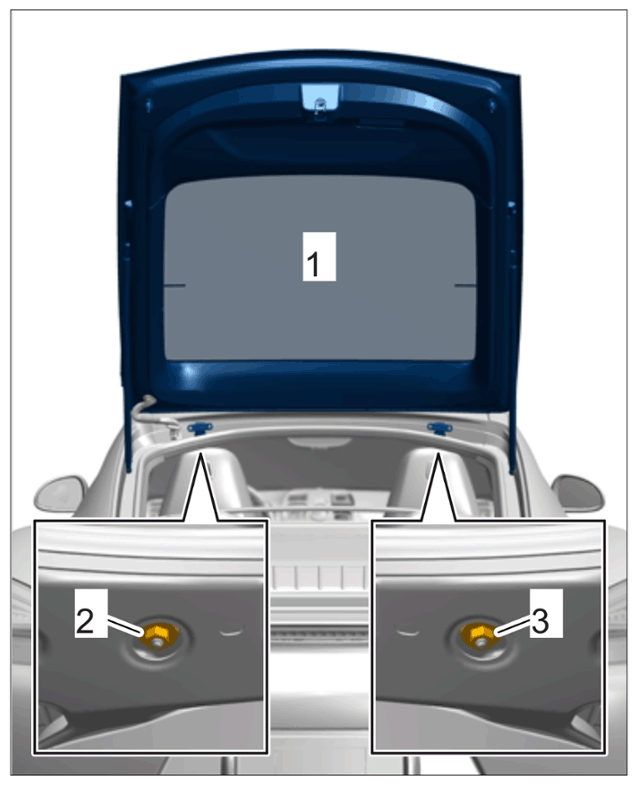

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge
Fastening screw on base plate for lid	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

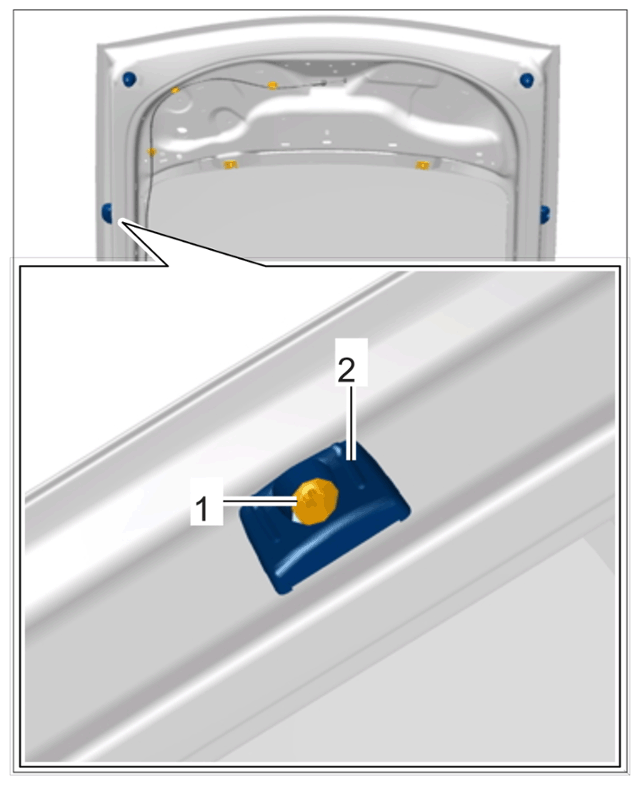

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing base plate
