WM, 509555 Replacing Body Front Section: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.

PART DESCRIPTION

Part number Description Addition Quantity
> 99919022901 BLIND RIVET 999.190.229.01
> 99919022901 BLIND RIVET 999.190.229.01
> 99919022901 BLIND RIVET 999.190.229.01
> 99919022901 BLIND RIVET 999.190.229.01
> 99919023001 BLIND RIVET 999.190.230.01
> 99919023001 BLIND RIVET 999.190.230.01
> 99919022901 BLIND RIVET 999.190.229.01
> 99907354101 TORX SCREW 999.073.541.01
> 99919023001 BLIND RIVET 999.190.230.01
> 99907354901 COUNTERSUNK SCREW 999.073.549.01
> 90037700301 HEXAGON NUT 900.377.003.01

TOOL DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14269530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminum tool set General workshop equipment > V.A.G 2010/2A
G14269531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14269532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and straightening system General workshop equipment > VAS 811 017
G14269533Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14269534Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6755
G14269535Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14269536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6530A
G14269537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14269538Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14269539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 003
G14269540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 005
G14269541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 001
G14269542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14269543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminum Vehicle-specific workshop equipment > VAS 852 001
G14269544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminum General workshop equipment > VAS 6572/2
G14269545Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14269546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

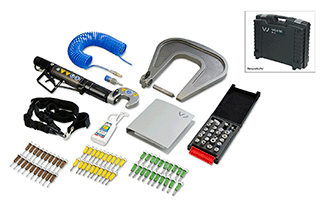

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14269547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14269548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14269549Courtesy of PORSCHE CARS NORTH AMERICA, INC.

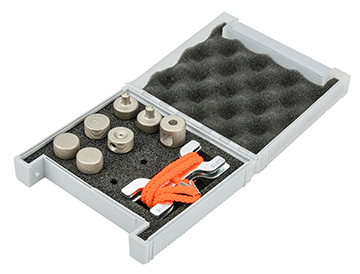

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14269550Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14269551Courtesy of PORSCHE CARS NORTH AMERICA, INC.

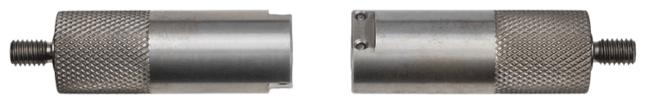

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14269552Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14269553Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14269554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14269555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G14269556Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G14269557Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G14269558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

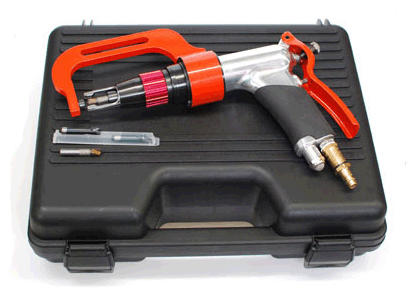

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14269559Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14269560Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14269561Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14269562Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14269563Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14269564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14269565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14269566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14269567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14269568Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14269569Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hot-air blower General workshop equipment > V.A.G 1416
G14269570Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14269571Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14269572Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14269573Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spotweld drill bit Commercially available tool > Nr.129
G14269574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Cut measurement Dimension X Length 110 mm
Drill bit   Diameter 6.5 mm
Drill bit   Diameter 7.2 mm
Drill bit   Diameter 6.5 mm
Drill bit   Diameter 6.6 mm
Drill bit   Diameter 6.6 mm
Drill bit   Diameter 6.6 mm
Applying adhesive   Application depth 3.0 mm
Applying adhesive   Application depth 3.0 mm
Drill bit   Diameter 6.6 mm
Applying adhesive   Application depth 3.0 mm
Threaded joint for ground connection   Tightening torque 15 N.m (11 ft.lb)
