WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

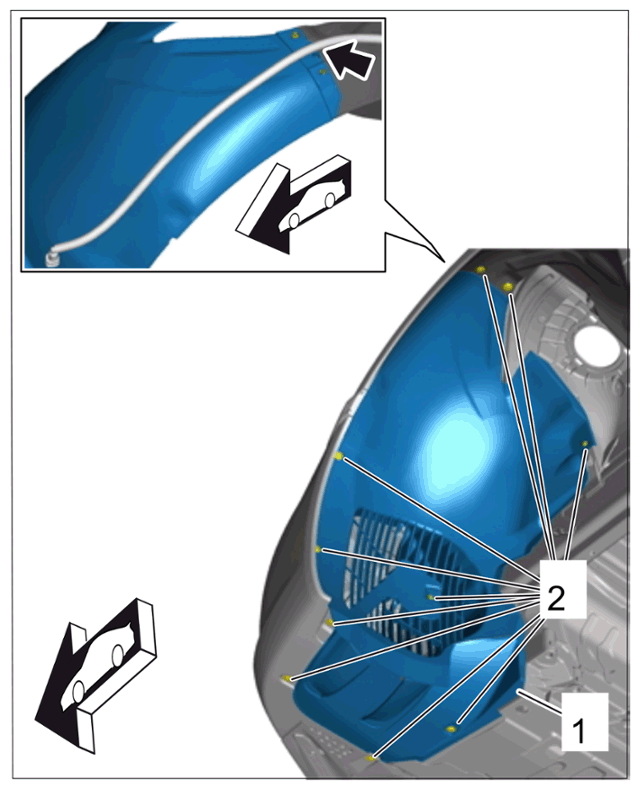

| Fastening screw securing front part of wheel housing liner to body | Item 2 | Tightening torque | 3 N.m (2 ft.lb) |
Removing front wheel housing liner - front part

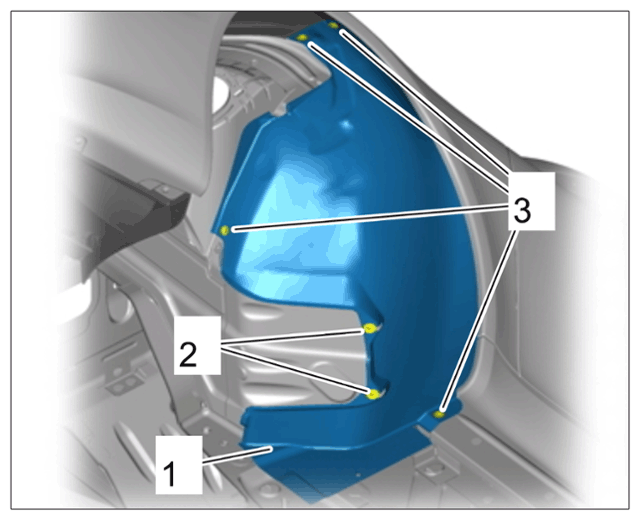

| Fastening screw securing rear part of wheel housing liner to body | Item 2 | Tightening torque | 3 N.m (2 ft.lb) |
Removing front wheel housing liner - rear part
| Fastening nuts securing rear part of wheel housing liner to body | Item 3 | Tightening torque | 3 N.m (2 ft.lb) |
Removing front wheel housing liner - rear part
