WM, 503955 Replacing Spring Strut Mount: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TOOL DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919022701 | BLIND RIVET 999.190.227.01 |
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|
| twist drill | Commercially available tool | > Nr.201 | |

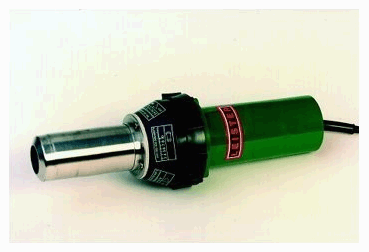

| Hot-Air Blower | General workshop equipment | > V.A.G 1416 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Connection point for section of spring strut mount | Cut | Length | 20 mm | ||
| Drill bit | Diameter | 6.5 mm | |||
| Applying adhesive | Application depth | 3.0 mm |
