WM, 635619 Removing And Installing Rear Panel (Logo): Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2021 Porsche 718 Cayman, 2021 Porsche 718 Boxster, 2020 Porsche 718 Cayman, 2020 Porsche 718 Boxster, and 2019 Porsche 718 Cayman. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

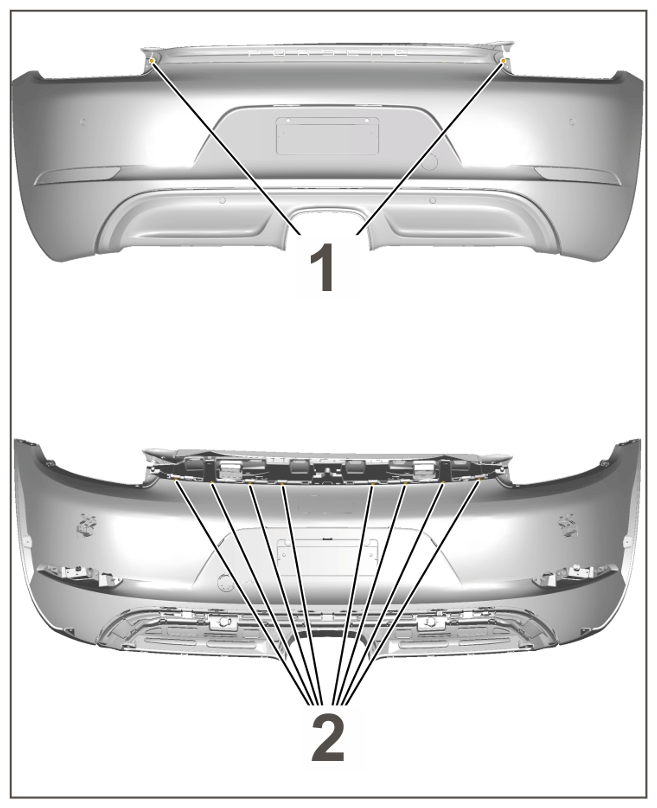

| Fastening screws for rear panel (logo) | Item 1 | Tightening torque | 2.4 N.m (2 ft.lb) | + 10% | +/- 15% |
|
Fastening screws |
|||||
| Fastening screws for cover | Item 2 | Tightening torque | 2.4 N.m (2 ft.lb) | + 10% | - 15% |
|
Fastening screws |
|||||

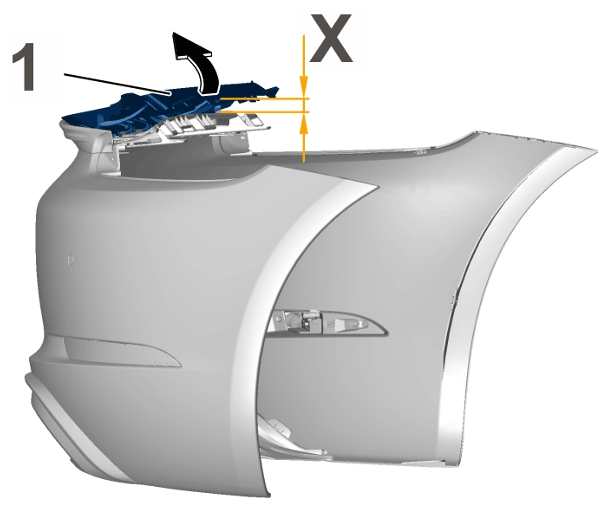

| Distance from cover to rear apron | Item X | Length | 5 cm | +/- 1 cm | |
|
Cover |
