Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Window regulator motor to power windows mechanism | Tightening torque | 4.7 Nm (3.5 ftlb.) | +/- 0.5 Nm (0.3 ftlb.) | ||
|

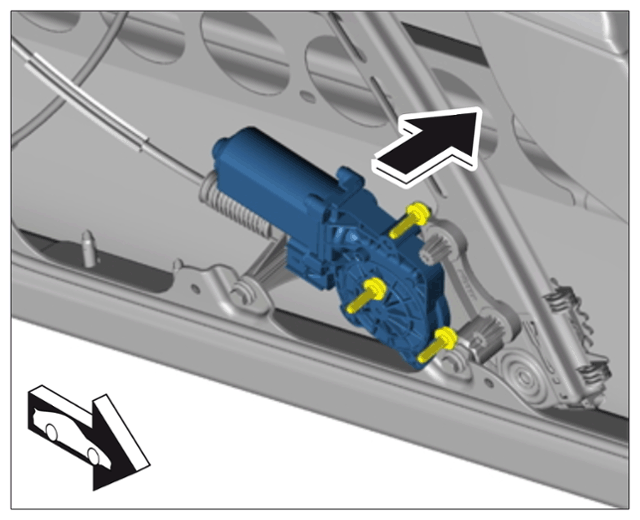

Removing window regulator motor |
|||||
| Fastening nut for power windows mechanism | Tightening torque | 9.7 Nm (7.5 ftlb.) | +/- 0.9 Nm (0.5 ftlb.) | ||
|

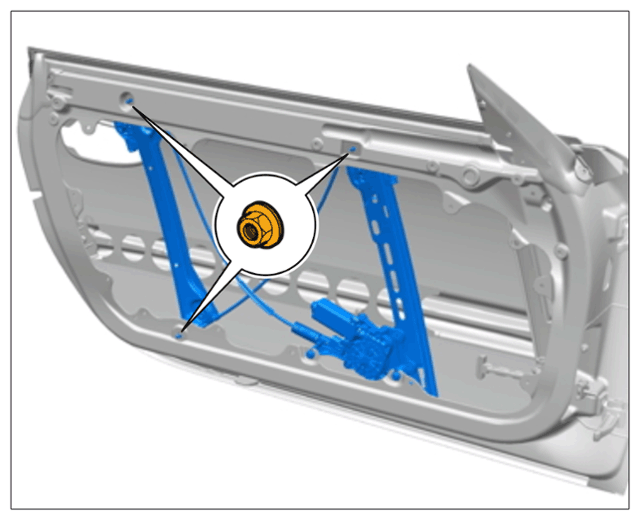

Screwing off fastening nuts |
|||||
