Removing Front Power Windows

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

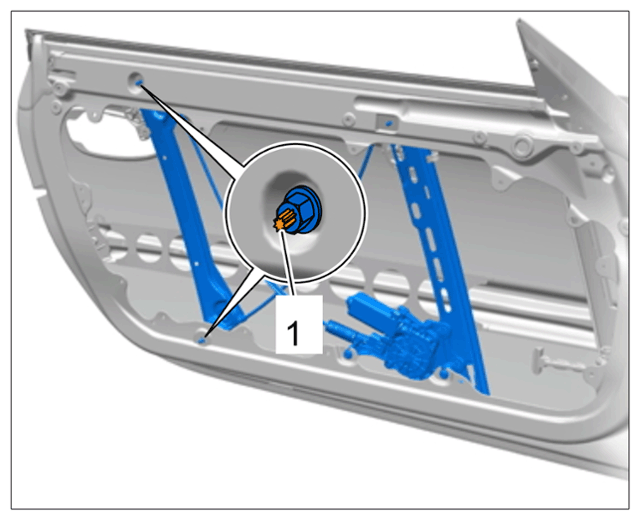

• Do not turn adjusting screws -1-  during the fitting procedure.
• The adjusting screws -1-  on the power windows spare part are preset.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

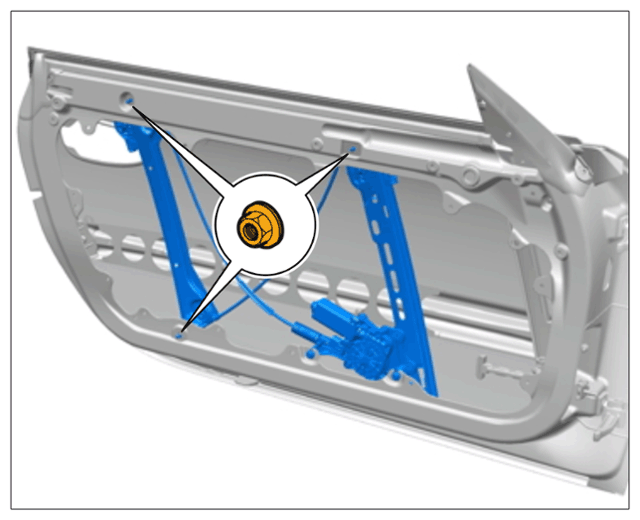

1. Screw off fastening nuts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

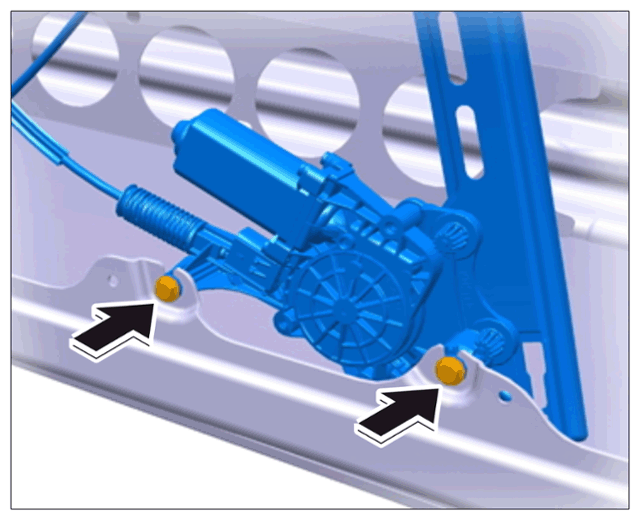

2. Loosen fastening screws for window regulator motor -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Remove power windows unit through the door opening.
